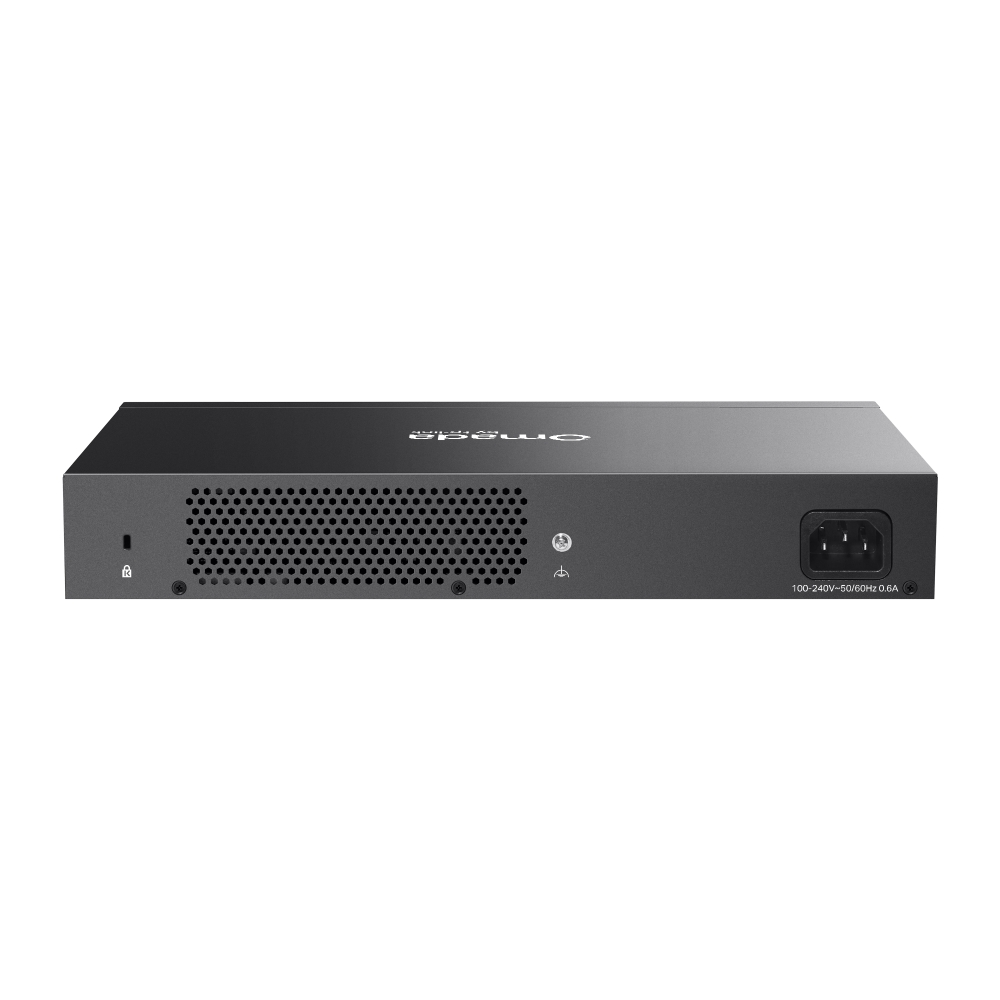

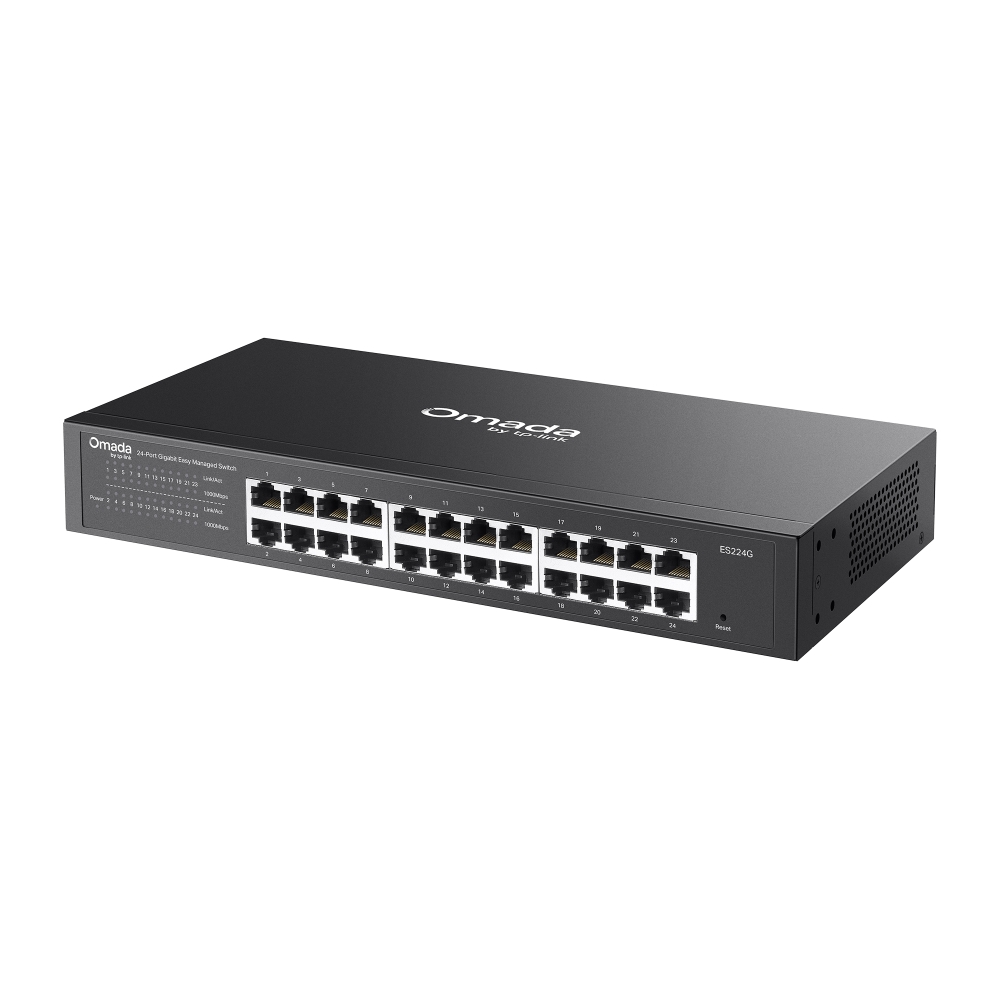

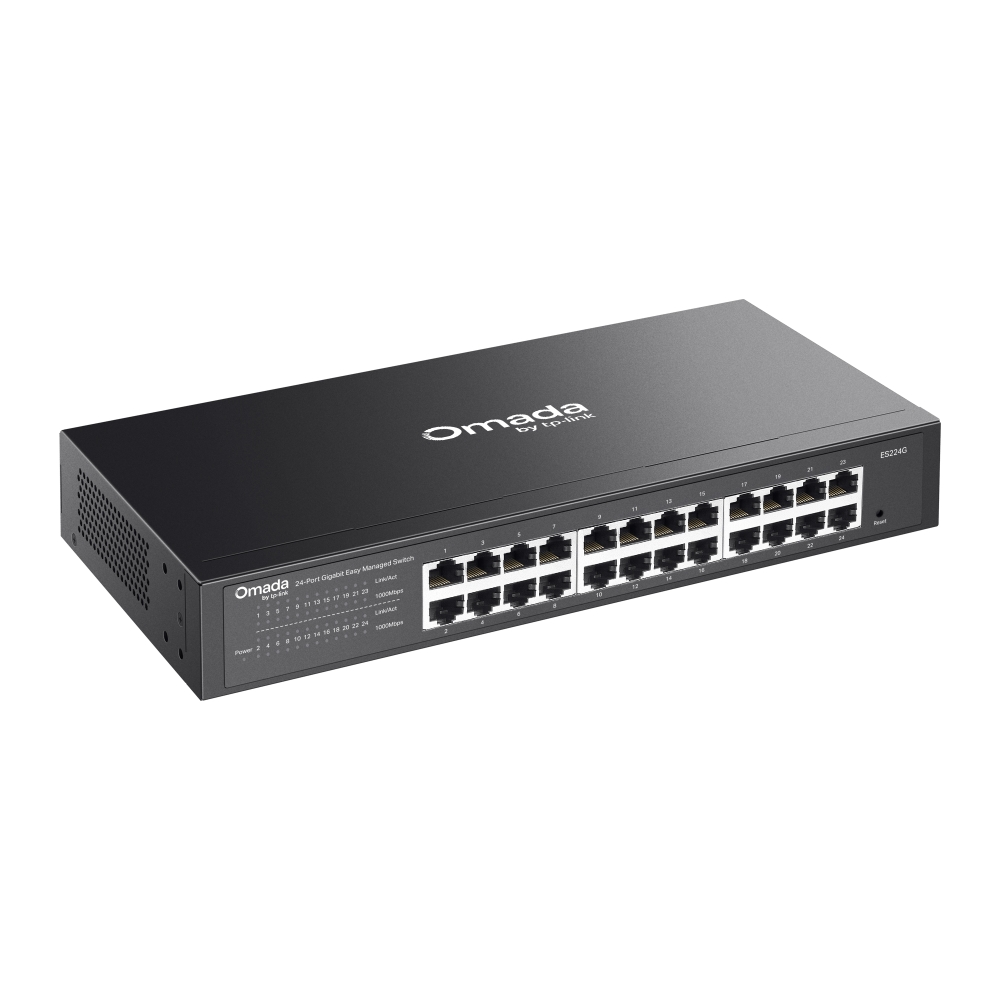

TP-LINK ES224G Omada 24-Port Gigabit Easy Managed Switch
เพิ่มเมื่อ: 2026-09-23 13:56:46.0
แก้ไขล่าสุด: 2026-09-23 13:57:02.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comManaged Switch TP-LINK ES224G Omada 24-Port Gigabit Easy Managed Switch
TP-LINK ES224G Omada 24-Port Gigabit Easy Managed Switch
Managed Switch TP-LINK ES224G Omada 24-Port Gigabit Easy Managed Switch
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
HARDWARE FEATURES
Interface :
• 24× 10/100/1000 Mbps RJ45 Ports
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity : Fanless
Installation :
• Desktop
• Rackmountable
Physical Security Lock : √
Power Supply : 100-240 V~50/60 Hz
Dimensions ( W x D x H ) : 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
Surge Protection : ±6kV
PERFORMANCE
Packet Buffer Memory : 4 Mbit
Jumbo Frame : 15 KB
Switching Capacity : 48 Gbps
Packet Forwarding Rate : 35.7 Mpps
MAC Address Table : 8K
SOFTWARE FEATURES
Quality of Service :
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features :
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast :
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN :
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method : Store-And-Forward
