IP-COM G3350F 48GE+2SFP Cloud Managed Switch
เพิ่มเมื่อ: 2025-08-27 17:31:54.0
แก้ไขล่าสุด: 2025-08-27 17:38:48.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) IP-COM G3350F 48GE+2SFP Cloud Managed Switch, 48 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports ( รับประกัน 3 ปี )

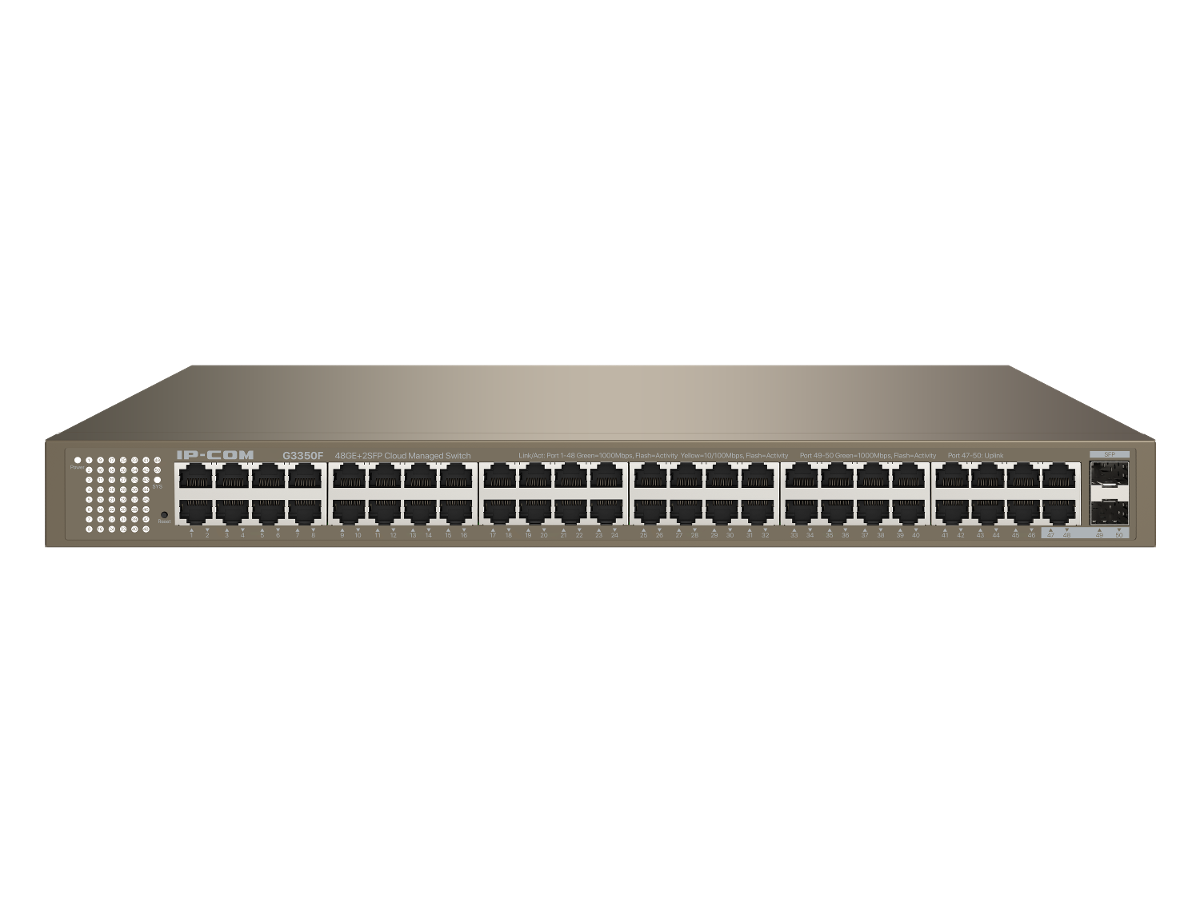

IP-COM G3350F 48 Gigabit + 2 SFP Cloud Managed Switch
SWITCH (สวิตซ์) IP-COM G3350F 48GE+2SFP Cloud Managed Switch, 48 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports
- Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, and IEEE 802.1p/q/w/d/s standards
- 48 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports
- 16K MAC address and MAC address automatic learning
- 12 Mb large buffer
- Switching capacity: 100 Gbps
- VLAN, IGMP, QoS, ACL, DHCP Snooping and Telnet supported
- Supports App management and visualized local management
Network standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED indicators :
One Link/Act LED indicator for each port
One Power LED indicator
One SYS LED indicator
Fixed ports :
48 x 10/100/1000Base-T Ethernet port
2 x 1000Base-X SFP slot
Lightning protection :
Port: 6 kV
Power supply: 6 kV
Forwarding mode : Store-and-forward
Switching capacity : 100 Gbps
Packet forwarding rate : 74.4 Mpps
Switching buffer : 12 Mbit
MAC address table : 16K
Input voltage : 100 - 240V AC 50/60Hz
Dimensions : 440 mm * 240 mm * 44 mm(L x W x H)
Environment :
Operating temperature: 0°C - 45°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage temperature: -40°C - 70°C
Storage humidity: (5% - 90%)RH, non-condensing
Security features :
Support ARP receiving limit
Support discarding unknown MAC addresses
Support DoS attack defense
Support 802.1x security authentication
Support RADIUS authentication
VLAN :
Support 4 K VLAN table
Support IEEE 802.1q VLAN
Support three port modes: Access, Trunk and Hybrid
DHCP :
Support DHCP snooping
Support Option 82 policy configuration
Port aggregation :
Support Static aggregation
Support Dynamic aggregation
STP :
Support IEEE 802.1d STP (Spanning Tree Protocol)
Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Support edge ports
Support BPDU statistics
IGMP :
Support IGMP snooping V1/V2/V3
Support fast leave of ports
Port mirroring : Support N: 1 port mirroring
QoS :
Support SP (Strict Priority)
Support SWRR (Simple Weighted Round Robin)
Support WRR (Weighted Round Robin)
Support 802.1p port trust mode
Support DSCP port trust mode
Support a maximum of 8-queue service quality mapping
ACL :
Support MAC ACL
Support IPv4 ACL
Cloud Management :
Support configuration delivery from CloudFi management platform
Support CloudFi App management
Support log reporting and fault detection
Support remote maintenance: reboot, backup, upgrade
