| Managed PoE Switches
| Switch TP-LINK Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Switch TP-LINK Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
เพิ่มเมื่อ: 2026-07-22 12:52:08.0
แก้ไขล่าสุด: 2026-07-22 12:54:08.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, 65W Power Budget

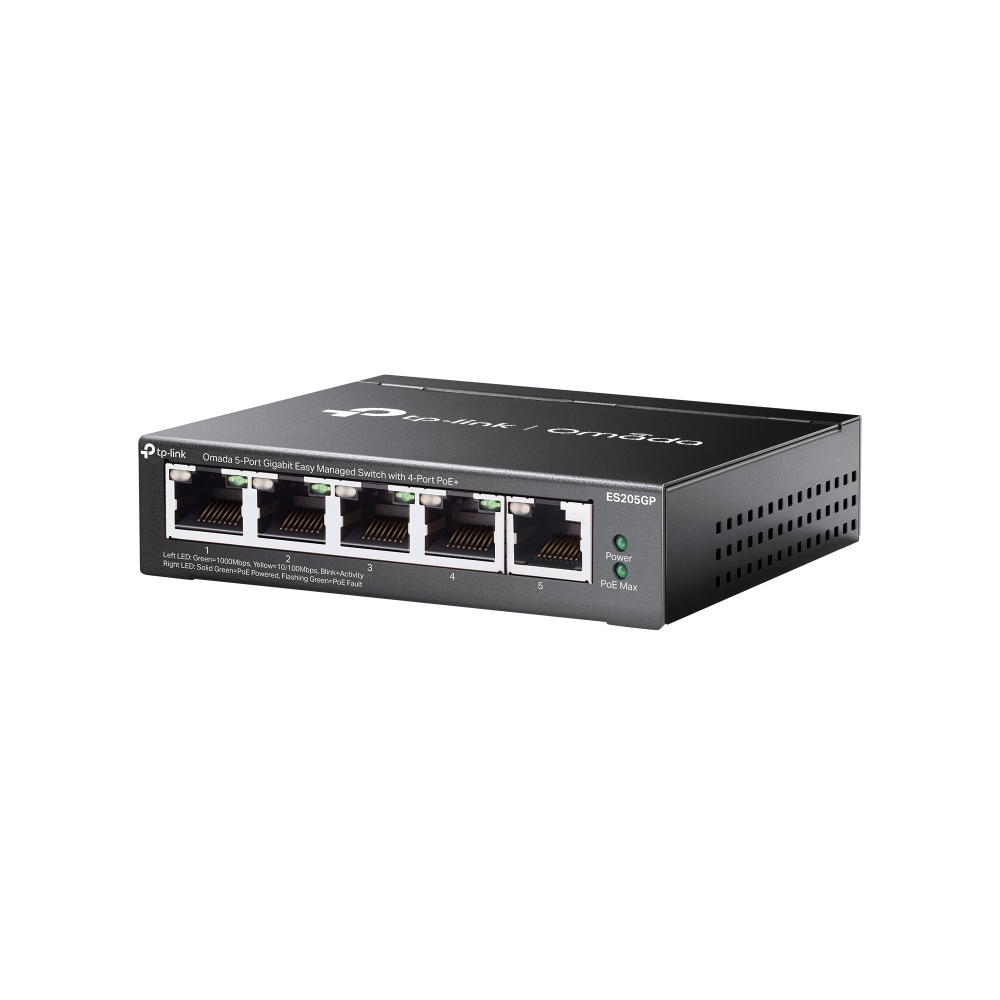

Switch TP-LINK Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
SWITCH (สวิตซ์) TP-LINK Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, 65W Power Budget
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE**, QoS, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Interface :
• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity : Fanless
Installation :
• Desktop

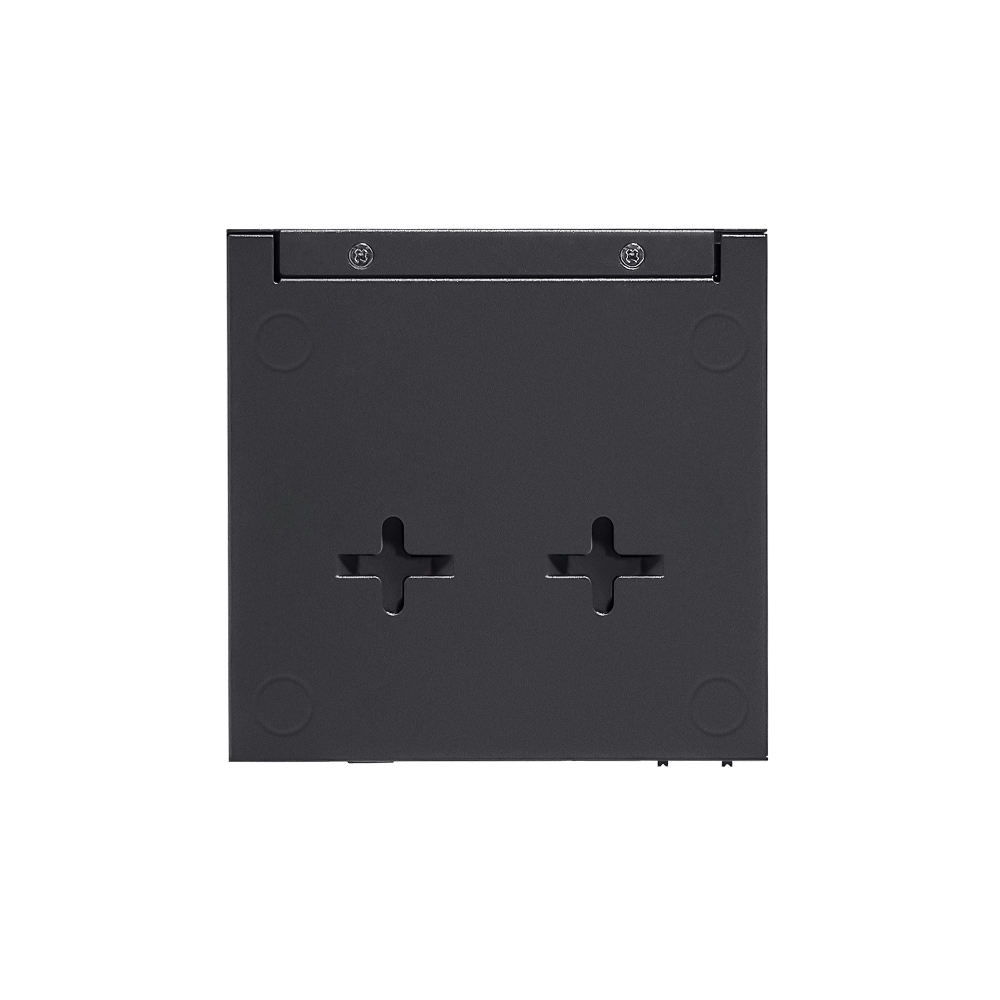

• Wall Mount
Physical Security Lock : √

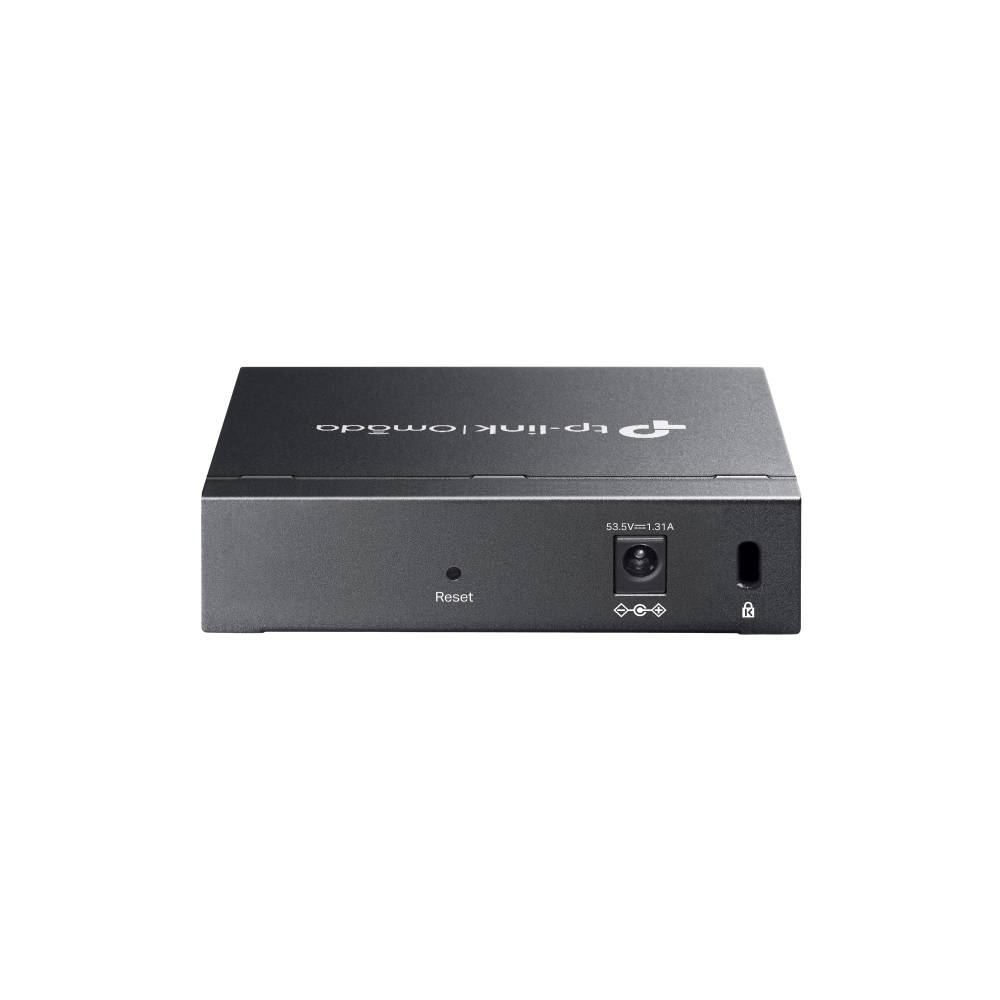

Power Supply : AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A)
PoE Ports (RJ45) :
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) : 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Surge Protection : ±6kV
Packet Buffer Memory : 4 Mbit
Jumbo Frame : 15 KB
Switching Capacity : 10 Gbps
Packet Forwarding Rate : 7.4 Mpps
MAC Address Table : 8K
Certification : FCC, CE, RoHS
Package Content :
• ES205GP
• Power Adapter
• Power Cord
• Rubber Feet
• Installation Guide
Environment :
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
