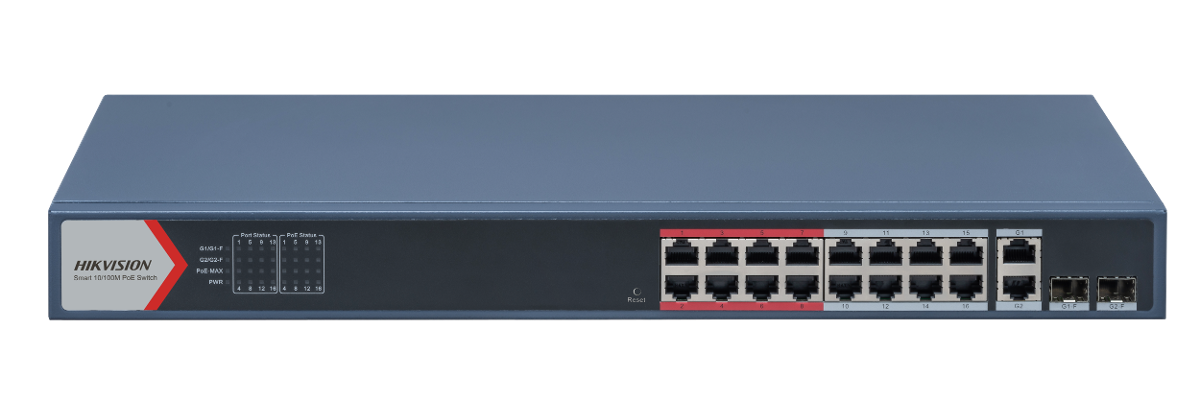

HIKVISION DS-3E1318P-EI 16 Port Fast Ethernet Smart POE Switch
เพิ่มเมื่อ: 2025-11-14 17:53:54.0
แก้ไขล่าสุด: 2025-11-14 17:58:54.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) HIKVISION DS-3E1318P-EI 16 Port Smart POE Switch, 16 × 10/100 Mbps PoE ports, 2 × Gigabit combos (รับประกัน 3ปี)
SWITCH POE HIKVISION DS-3E1318P-EI
SWITCH (สวิตซ์) HIKVISION DS-3E1318P-EI 16 Port Smart POE Switch, 16 × 10/100 Mbps PoE ports, 2 × Gigabit combos
- 16 × 10/100 Mbps PoE ports, 2 × Gigabit combos.
- Total PoE Power Budget 230 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Port : 16 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table : 16 K
Switching Capacity : Whole-Device Performance: 9.2 Gbps
Port Performance: 7.2 Gbps : Packet Forwarding Rate
Whole-Device Performance: 6.84 Mpps : Port Performance: 5.36 Mpps
Internal Cache : 4 Mbits
PoE Standard : IEEE 802.3af,IEEE 802.3at
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : PoE: Ports 1 to 16
Max. Port Power : 30 W
PoE Power Budget : 230 W
Shell : Metal material
Net Weight : 2.59 kg (5.71 lb)
Gross Weight : 3.68 kg (8.11 lb)
Dimensions (W × H × D) : 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 100-240 VAC, 50/60 Hz, Max. 4 A
Installation Mode : Rack (equipped with mounting ears)
Max. Power Consumption : 250 W
Power Consumption in Idle : 20 W
Surge Protection : 6 kV
Long Range :
Ports 1 to 16: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
VIP Port :
Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Port Isolation :
Ports 1 to 16: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog :
Ports 1 to 16: auto detect and restart the cameras that do not respond.
Link Aggregation :
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.
Loop Prevention :
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
