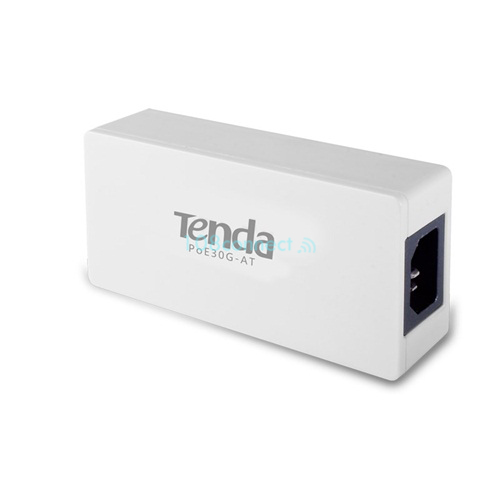

TENDA POE30G-AT
PoE Injector TENDA POE30G-AT IEEE802.3at Gigabit PoE Injector, 2 10/100/1000Mbps RJ45 Port; 100M POE
- PoE ports supports IEEE802.3at and IEEE802.3af standard
- Equipped with gigabit port, blazing-fast tranfer rate, maximum transfer rate of up to 30W for single port
- power distance extension of up to 100 meters for standard cat. 5e and cat. 6 Ethernet cable
- Plug and play, no any configuration required
Network standards :
IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
LED Indicator :
PWR, PoE
Interfaces :
1*10/100/1000 Base-T Ethernet Port(Data/PoE)
1*10/100/1000 Base-T Ethernet Port(Data)
Transmission media :
Recommended: CAT5/5e UTP or better
Dimension :
132.3mm*60mm*33mm
Level of protection :
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode :
Store-and-forward
Transmission Rate :
1000Mbps
PoE budget :
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Power consumption :
30W
Input voltage :
100-240V AC 50/60Hz
51V/0.8A DC(Power Adapter Output)
Mounting :
Desktop mounting: support
Environment :
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification :
FCC、CE 、RoHS、UL
|
|
|
|
