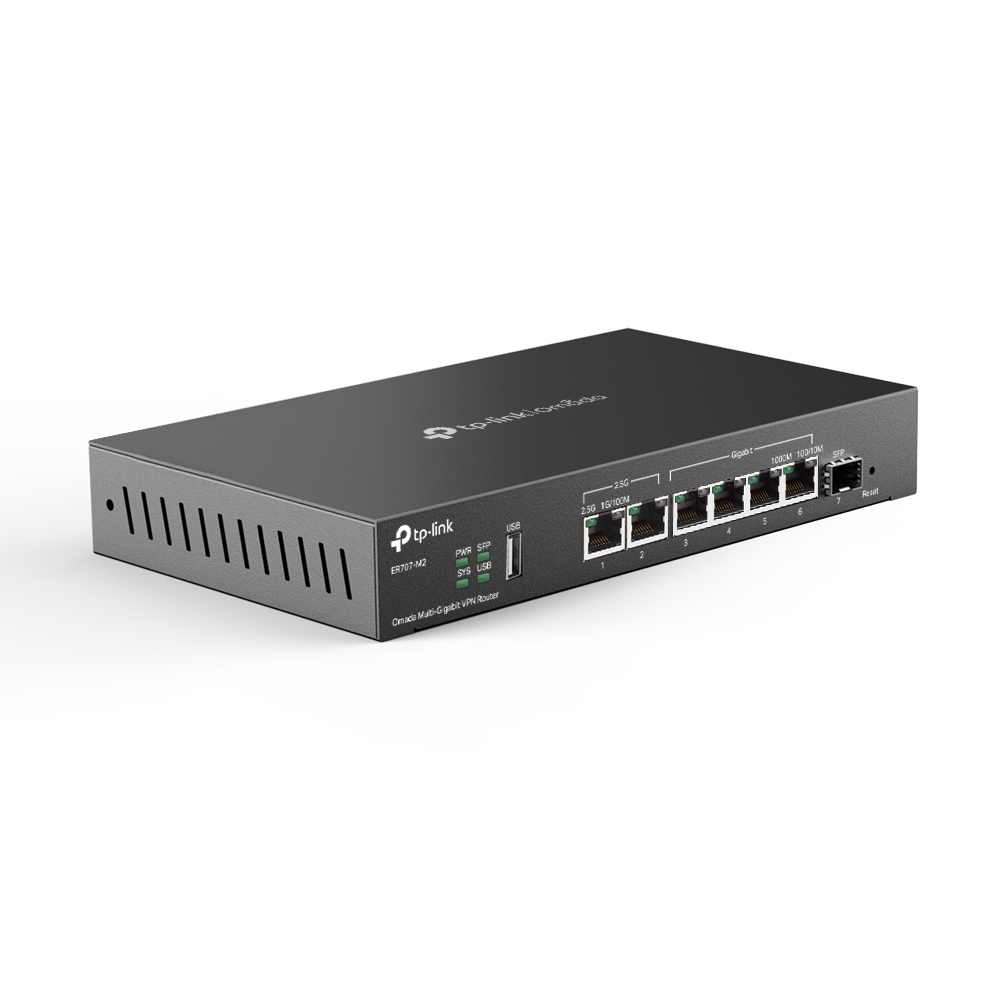

TP-LINK ER707-M2 Omada Multi-Gigabit VPN Router

 เพิ่มเมื่อ: 20/09/2023
 แก้ไขล่าสุด: 13/02/2024
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
เราเตอร์โหลดบารานซ์ ER707-M2 Omada Multi-Gigabit VPN Router, 1× 2.5G WAN and 1× 2.5G WAN/LAN, 4× Gigabit RJ45 WAN/LAN Ports(สินค้ารับประกัน limited lifetime)
4,990.00 บาท

 TP-LINK ER707-M2

ER707-M2 Omada Multi-Gigabit VPN Router, 1× 2.5G WAN and 1× 2.5G WAN/LAN, 4× Gigabit RJ45 WAN/LAN Ports

- Two 2.5G Ports : 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
Up to 6 WAN Ports : 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN : Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Integrated into Omada SDN : Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
- Centralized Management : Cloud access and Omada app provide the utmost in management convenience.
- Extensive Security Features : Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.



Interface

• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity : Fanless
Button : Reset Button
Power Supply : 12V/1.5A Adapter

Flash : 128MB NAND
DRAM : 1 GB DDR4
LED : PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) : 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection : 4 kV surge protection
Enclosure : Steel
Mounting : Desktop/Wall Mounting

Max Power Consumption :

• 14.2 W (with USB2.0 connected)
• 7.1 W (without USB2.0 connected)

Concurrent Session : 500,000
New Sessions /Second : 4,200
NAT (Static IP) : 2364.45 Mbps / 2343.28 Mbps
NAT(DHCP) : 2364.24 Mbps / 2326.21 Mbps
NAT(PPPoE) : 2350.93 Mbps / 2125.83 Mbps
NAT (L2TP) : 1249.04 Mbps / 831.12 Mbps
NAT (PPTP) : 1169.23 Mbps / 1175.52 Mbps

IPsec VPN Throughput :

ESP-MD5-AES256: 537.12 Mbps
ESP-SHA1-AES256: 754.65 Mbps
L2TP VPN Throughput :

Unencrypted: 1442.65 Mbps
Encrypted: 346.43 Mbps
SSL VPN Throughput : 142.99 Mbps
66 Byte Packet forwarding rate : 1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate : 2461.18 Mbps / 2457.32 Mbps

WAN Connection Type :

• IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone : Modify WAN/LAN MAC Address†
DHCP :

• DHCP Server/Client
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*
IPv6 : WAN Connection
VLAN : 802.1Q VLAN
IPTV : IGMP v2/v3 Proxy

Advanced Routing :

• Static Routing
• Policy Routing
Bandwidth Control :

• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance :

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

NAT :

• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit : IP-based Session Limit

IPsec VPN :

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN :

• PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption

L2TP VPN :

• L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec

OpenVPN :

• OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels*

Filtering :

• WEB Group Filtering
• URL Filtering
• Web Security

ARP Inspection :

• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

Attack Defense :

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Access Control : Source/Destination IP Based Access Control

Web Authentication :

• No Authentication
• Simple Password*
• Hotspot (Local User/Voucher* /SMS*/Radius*)
• External Radius Sever
• External Portal Sever*

Certification : CE, FCC, RoHS
Package Contents :

• ER707-M2
• Power Adapter
• Quick Installation Guide
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment :

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
