| NEW PRODUCT
| TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

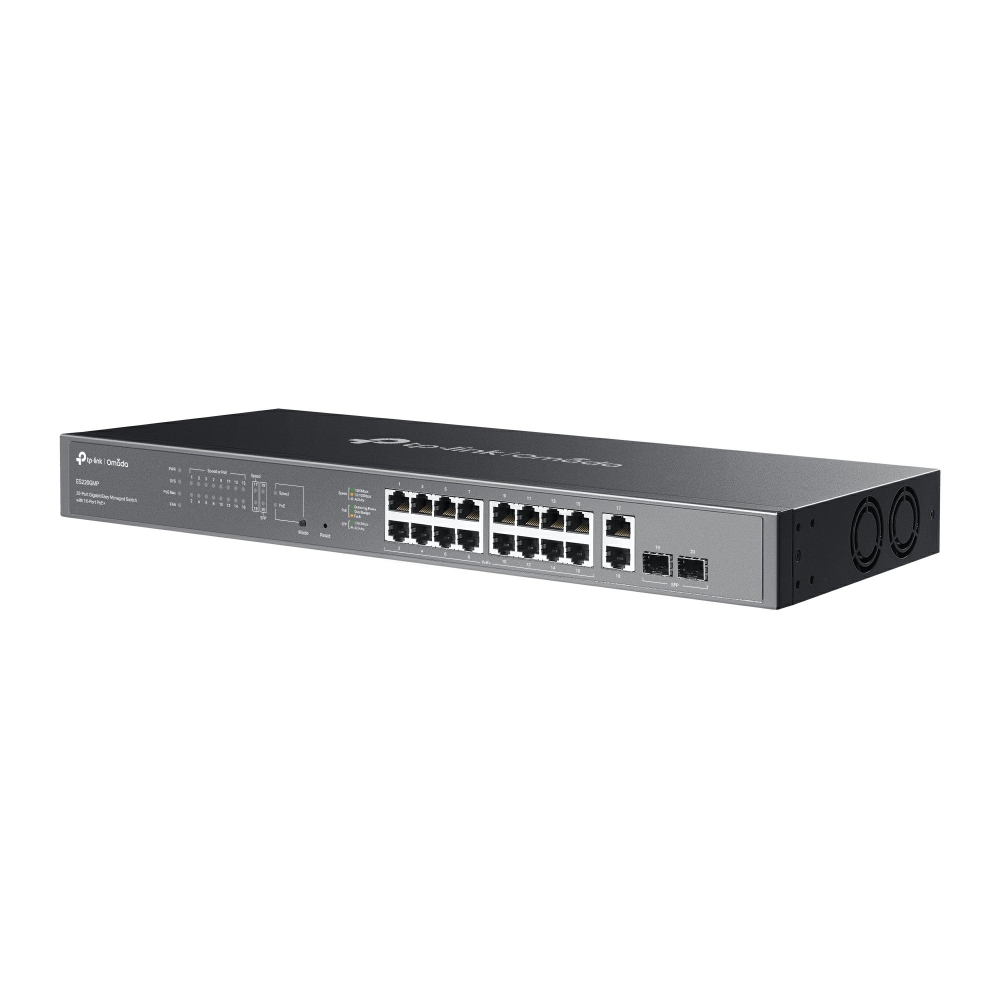

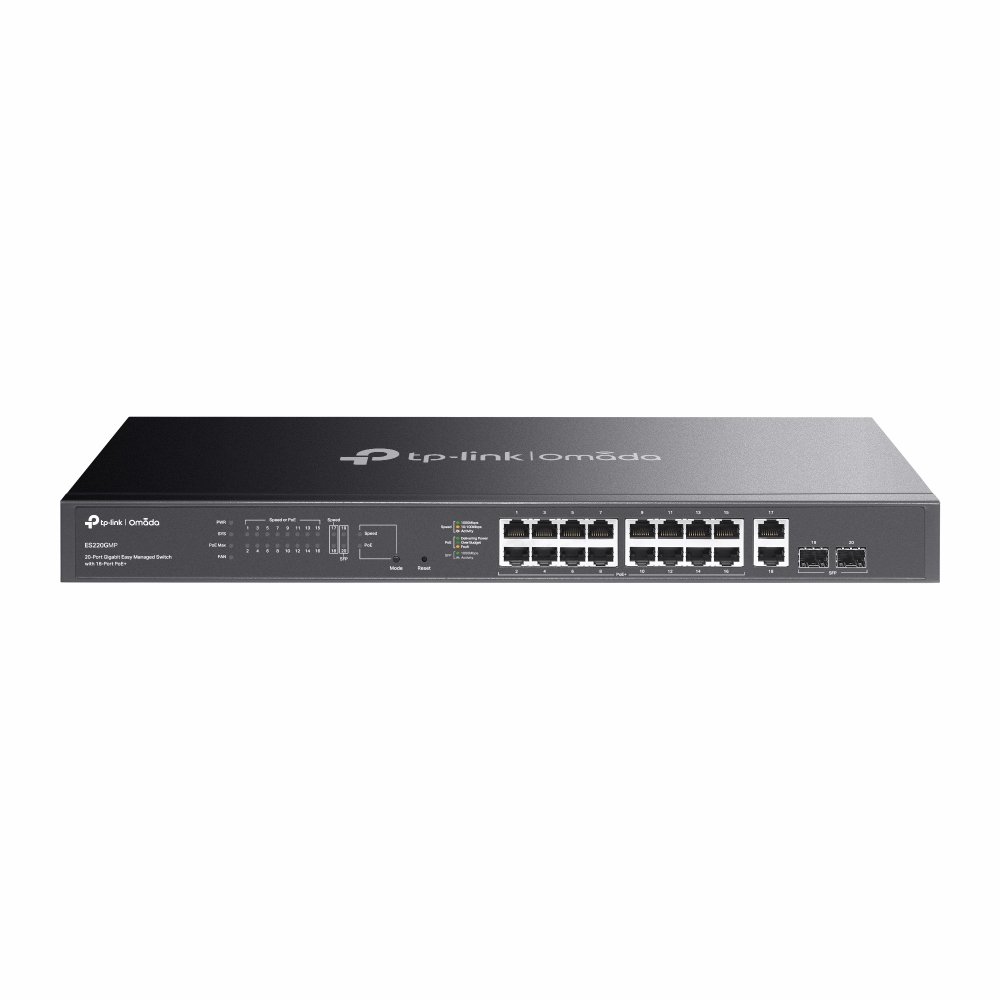

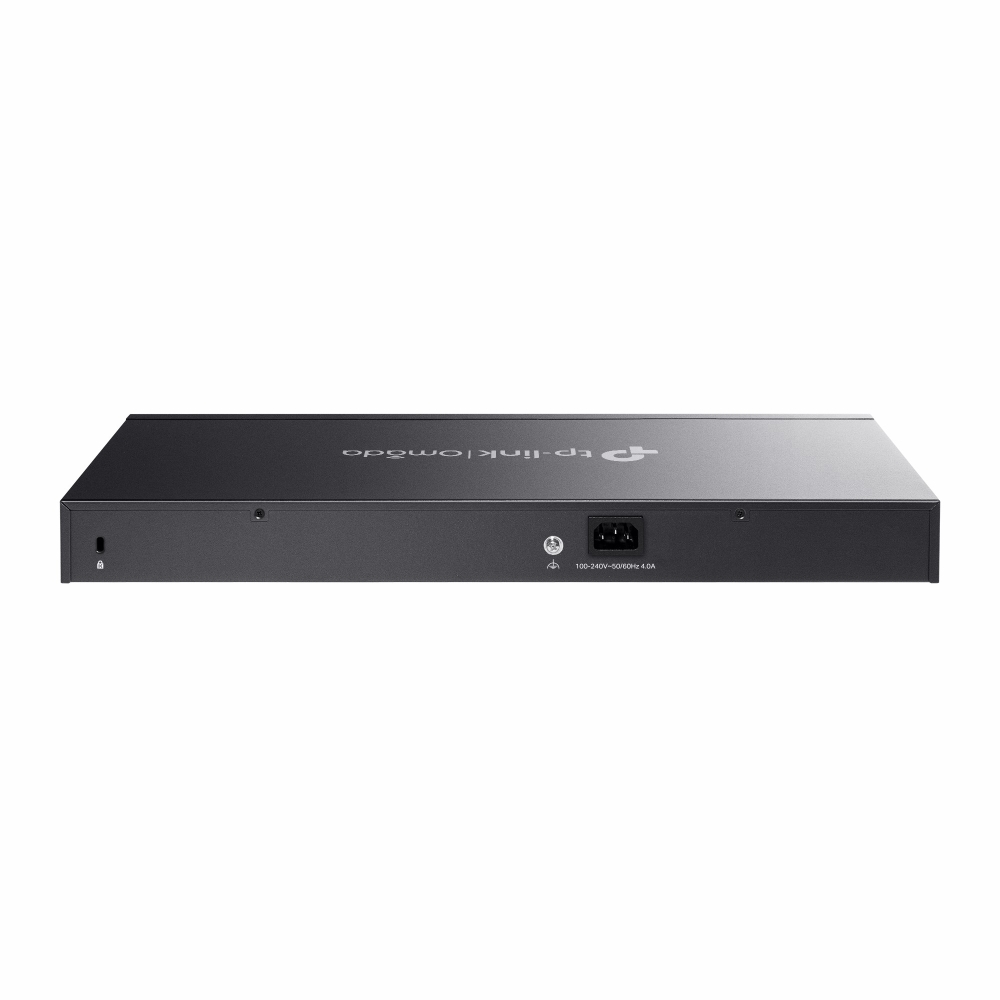

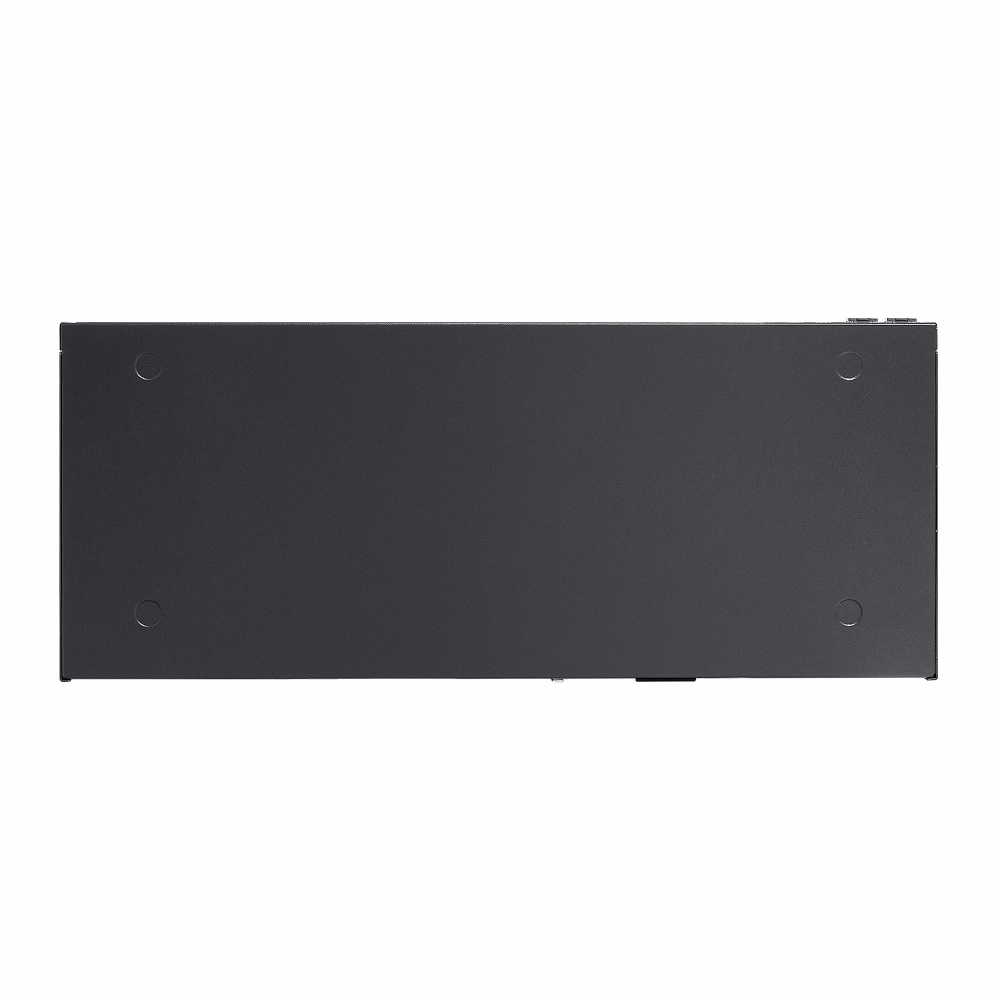

TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
เพิ่มเมื่อ: 2025-10-21 16:06:43.0
แก้ไขล่าสุด: 2025-10-21 16:14:05.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSwitch PoE TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
Switch PoE TP-LINK ES220GMP
Switch PoE TP-LINK ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
HARDWARE FEATURES
Interface :
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity : 2
Installation : Rackmountable
Physical Security Lock : √
Power Supply : 100–240V AC, 50/60Hz
PoE Ports (RJ45) :
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) : 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection : ±6kV
Switching Capacity : 40 Gbps
Packet Forwarding Rate : 29.76 Mpps
MAC Address Table : 8K
Packet Buffer Memory : 4 Mbit
Jumbo Frame : 15 KB
Quality of Service :
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features :
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast :
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN :
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method : Store-And-Forward
Omada App : Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management :
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access : Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning : Yes. Requires the use of Omada Cloud-Based Controller
Management Features :
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
Package Content
• ES220GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
