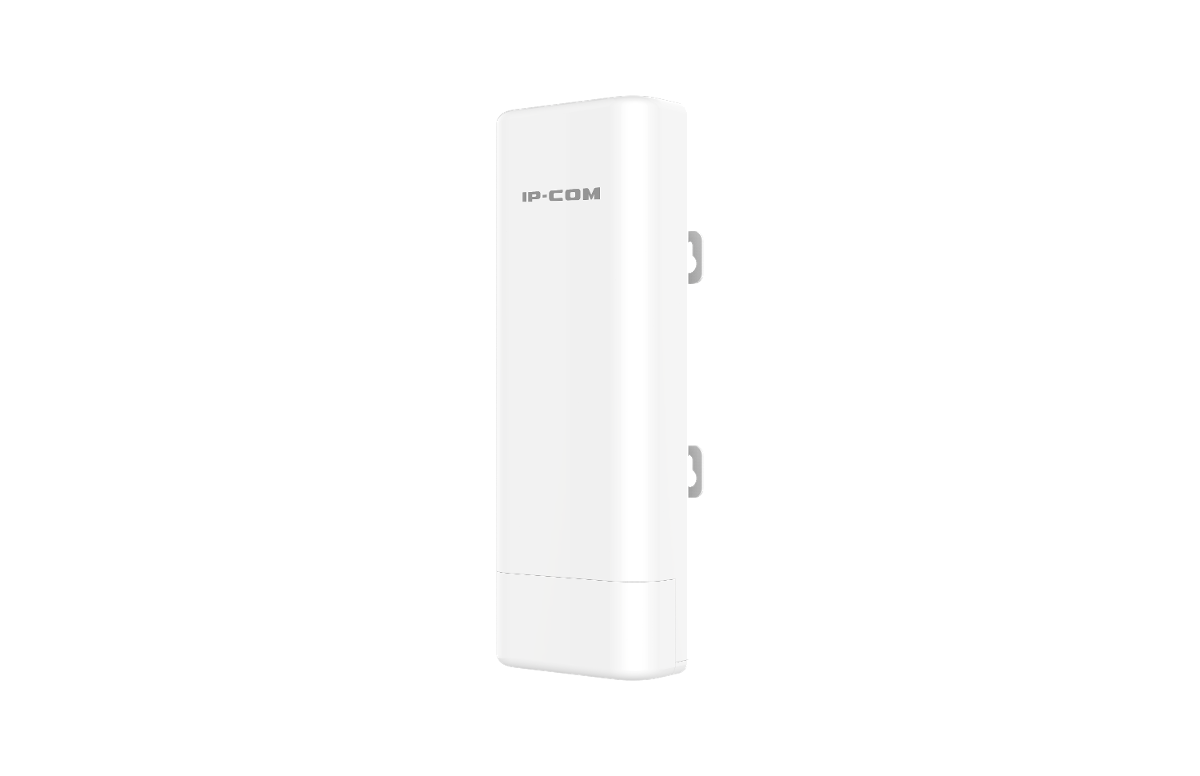

IP-COM CPE13V2.0 5GHz 16dBi ipMax AC Gigabit Outdoor CPE
เพิ่มเมื่อ: 2025-08-29 12:51:54.0
แก้ไขล่าสุด: 2025-08-29 12:52:33.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยซ์) IP-COM CPE13V2.0 5GHz 16dBi ipMax AC Gigabit Outdoor CPE ( รับประกัน 3 ปี )
IP-COM CPE13V2.0
Access Point (แอคเซสพอยซ์) IP-COM CPE13V2.0 5GHz 16dBi ipMax AC Gigabit Outdoor CPE
- 5GHz 11AC 867Mbps
- 16dbi directional antenna
- One Gigabit Ethernet Port
- IP65 waterproof enclosure
- 6000V Lightning Protection
- AP,Station,WISP operating mode supported
MS-5AC 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range range connection.
MS-5AC adopt of 11AC wave2 technology, it delivers 867Mbps speed rate at 5GHz radio. Come with Gigabit ethernet LAN port design , the maximum throughput test for PtP connection can be up to 450Mbps.
MS-5AC adopts of independent external power amplifier and 16dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 10km.
Equipped with IP65 waterproof enclouse and high quality hardware design, MS-5AC can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
Frequency Range : 5GHz
Compliant Standards : IEEE 802.11a/n/ac
Private TDMA Protocol : ipMAX
Maximum Wireless Rate : 867Mbps
Interfaces : 1*10/100/1000Mbps Ethernet Port
Antennas Gain : 16dBi
Antenna Beamwidth : Horizontal: 30° Vertical: 30°
Reset Button : 1
Power Consumption : 6.5W
Waterproof Level : IP65
LED indicator : PoE/LAN, LED1, LED2, LED3
Power Method :
PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC
Lightning Protection : 6000V
PoE 802.3af/at : Power over ethernet up to 100 meters
Passive PoE :
Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters
Voltage range: 21-25V DC
Receiver sensitivity :
11a 6Mbps -91dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 -62dBm±1.5dBm
Operating mode : AP/Station/WISP/Repeater/Router
Enable/Disable Wireless Radio : Support
SSID Hidden : Support
Wireless Client isolation : Support
SSID Isolation : Support
Channel Bandwidth : 20/40/80MHz
Client Limitation For SSID : Support
Wireless Access Control : Support
Weak Signal Client Limitation : Support
Transmission Power : Adjustable power by 1dBm
WMM Capable : Support
APSD Capable : Support
Wireless Security : 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2
Transparent Bridge : Support
VLAN Tagging for SSID : Support
DHCP Server : Support
