TP-LINK S106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
เพิ่มเมื่อ: 2025-07-12 15:22:53.0
แก้ไขล่าสุด: 2025-07-12 15:23:09.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSwitch (สวิตซ์) TP-LINK S106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
TP-LINK S106P

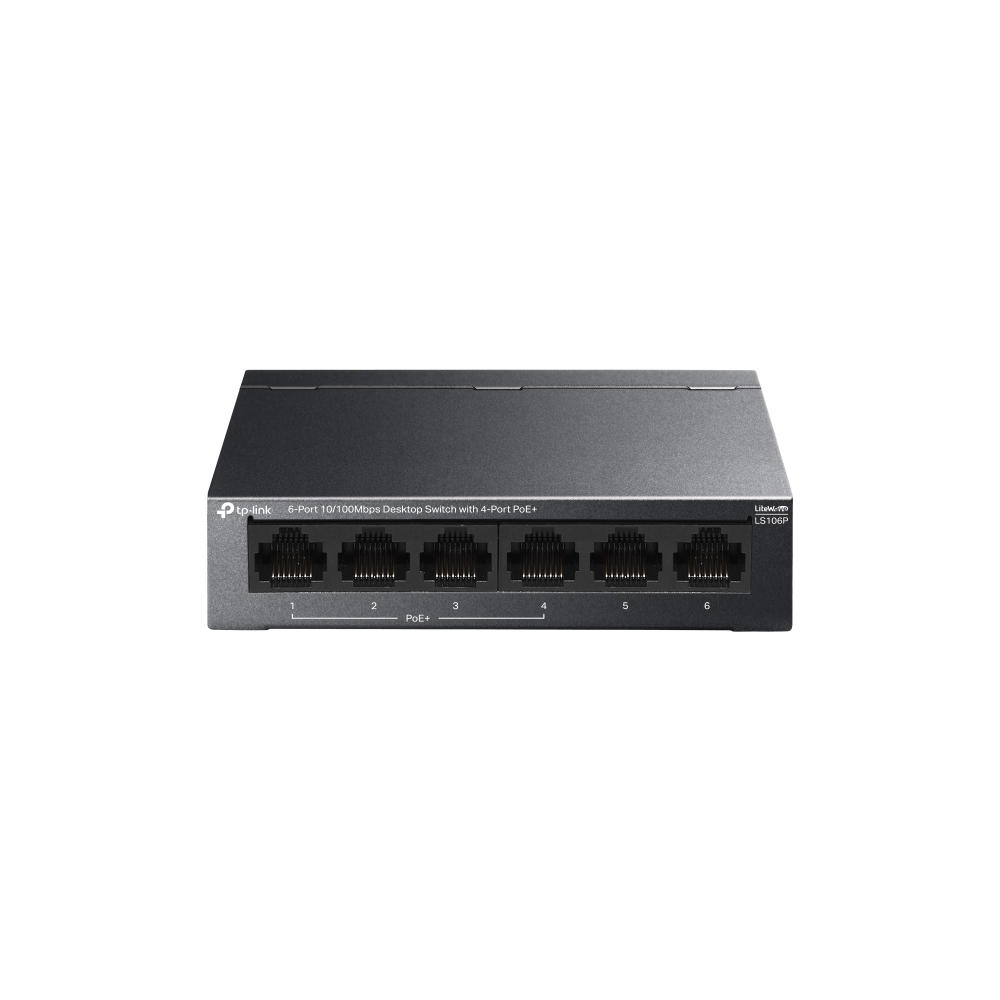

Switch (สวิตซ์) TP-LINK S106P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 2× 10/100 Mbps Non-PoE Ports
- 65 W total PoE budget*
- Up to 250 m (820ft) data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Desktop / Wall-mounting
Standards and Protocols : IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interface :
• 6*10/100 Mbps RJ45 Ports with 4 PoE+ Ports (Port 1 to Port 4)
• AUTO Negotiation/AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)
Fan Quantity : Fanless
External Power Supply : External Power Adapter (Output: 53.5 VDC / 1.31 A)
Power Input : 220~240V, 50/60Hz (NV)
LED : Power, Link/Act, PoE Status
Packet Forwarding Rate : 0.893 Mpps
PoE Ports (RJ45) :
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
Power Supply: 65 W
Dimensions ( W x D x H ) : 3.9×3.9×1.0 in (99.8×98×25 mm)
Max. Power Consumption : 66.53 W
Max. Heat Dissipation : 226.19 BTU/h
Switching Capacity : 1.2 Gbps
Packet Buffer Memory : 2048 Bytes
Advanced Features :
• Extend Mode (Ports 1-4)
• Isolation Mode (Ports 1-4)
• PoE Auto Recovery (Ports 1-4)
Jumbo Frame : 2 KB
MAC Address Table : 2K
Transmission Method : Store-And-Forward
Package Content : Switch, Power Adapter, Rubber Feet, Installation Guide
