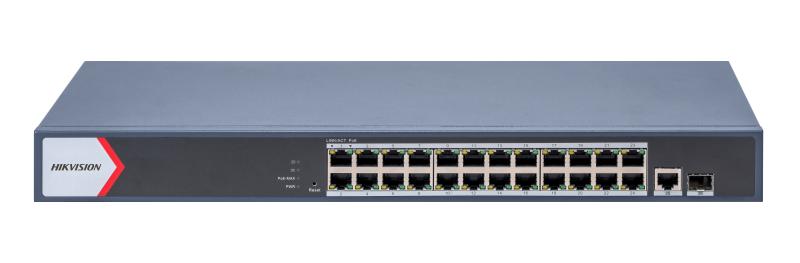

HIKVISION DS-3E1526P-EI/M 24 Port Gigabit Smart POE Switch
เพิ่มเมื่อ: 2025-05-01 18:16:38.0
แก้ไขล่าสุด: 2025-05-01 18:16:59.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) HIKVISION DS-3E1526P-EI/M 24 Port Gigabit Smart POE Switch, 24 Gigabit RJ45 PoE ports, 1 Gigabit RJ45 port, 1 Gigabit SFP port, 802.3af/at, PoE power budget 230W
HIKVISION DS-3E1526P-EI/M
SWITCH (สวิตซ์) HIKVISION DS-3E1526P-EI/M 24 Port Gigabit Smart POE Switch, 24 Gigabit RJ45 PoE ports, 1 Gigabit RJ45 port, 1 Gigabit SFP port, 802.3af/at, PoE power budget 230W
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
- Total PoE power budget 230 W
- Unified cloud management for security systems
- Network topology at your fingertips
- Remote troubleshooting
- Visualized topology management
- Up to 300 m long-range PoE transmission
- 6 kV surge protection
Ports : 24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC Address Table : 8 K
Switching Capacity : 56 Gbps
Packet Forwarding Rate : 41.66 Mpps
Internal Cache : 4.1 Mbits
PoE Standard : IEEE 802.3af,IEEE 802.3at
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : PoE: Ports 1 to 24
Max. Port Power : 30 W
PoE Power Budget : 230 W
Shell : Metal material
Net Weight : 2.96 kg (6.52 lb)
Gross Weight : 3.2 kg (7.05 lb)
Dimensions (W × H × D) : 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
Operating Temperature : 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 100~240 VAC, 50/60 Hz, Max. 4 A
Installation Mode : Rack (equipped with mounting ears)
Max. Power Consumption : 250 W
Power Consumption in Idle : 30 W
Surge Protection : 6 KV
Long Range :
Ports 1 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation :
Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog :
Ports 1 to 24: auto detect and restart the cameras that do not respond.
