ZYXEL WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point

 เพิ่มเมื่อ: 09/06/2020
 แก้ไขล่าสุด: 13/02/2024
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point with Smart Antenna (Free 1YR Nebula Professional license) (สินค้ารับประกัน ตลอดอายุการใช้งาน)
19,900.00 บาท

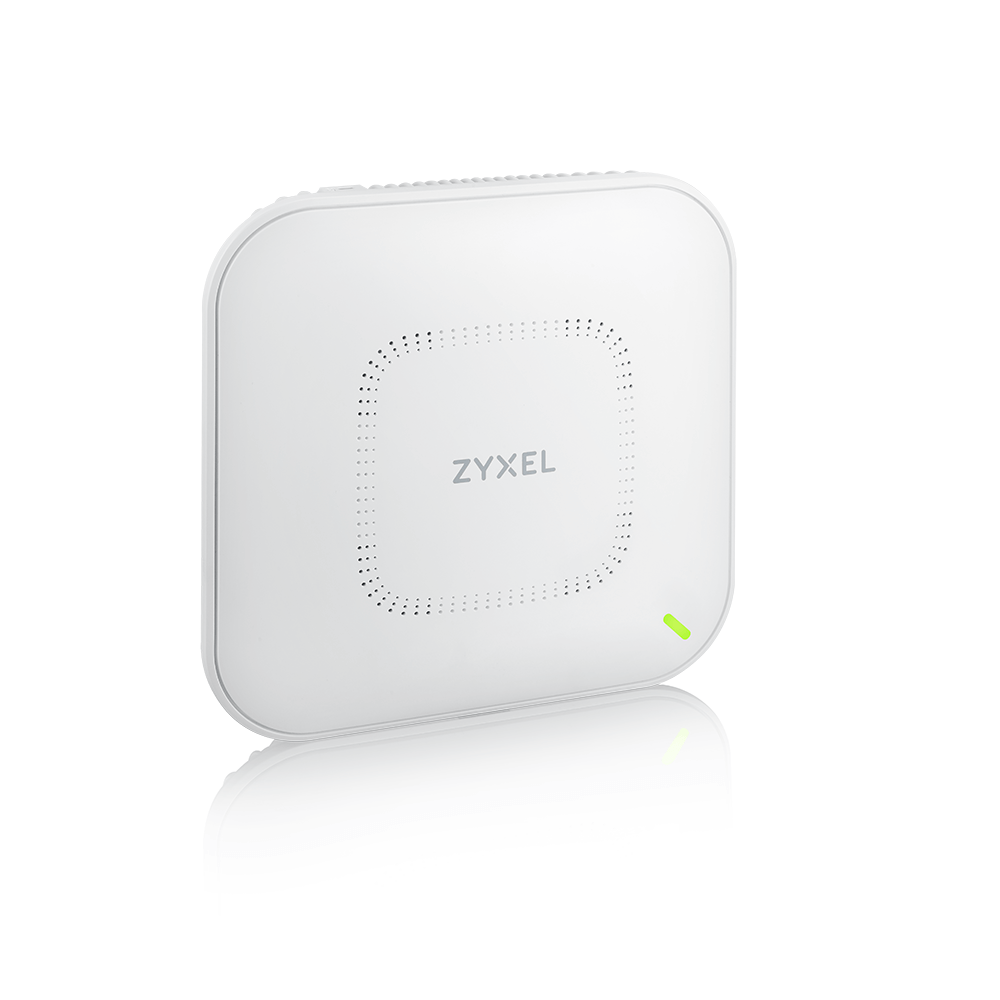

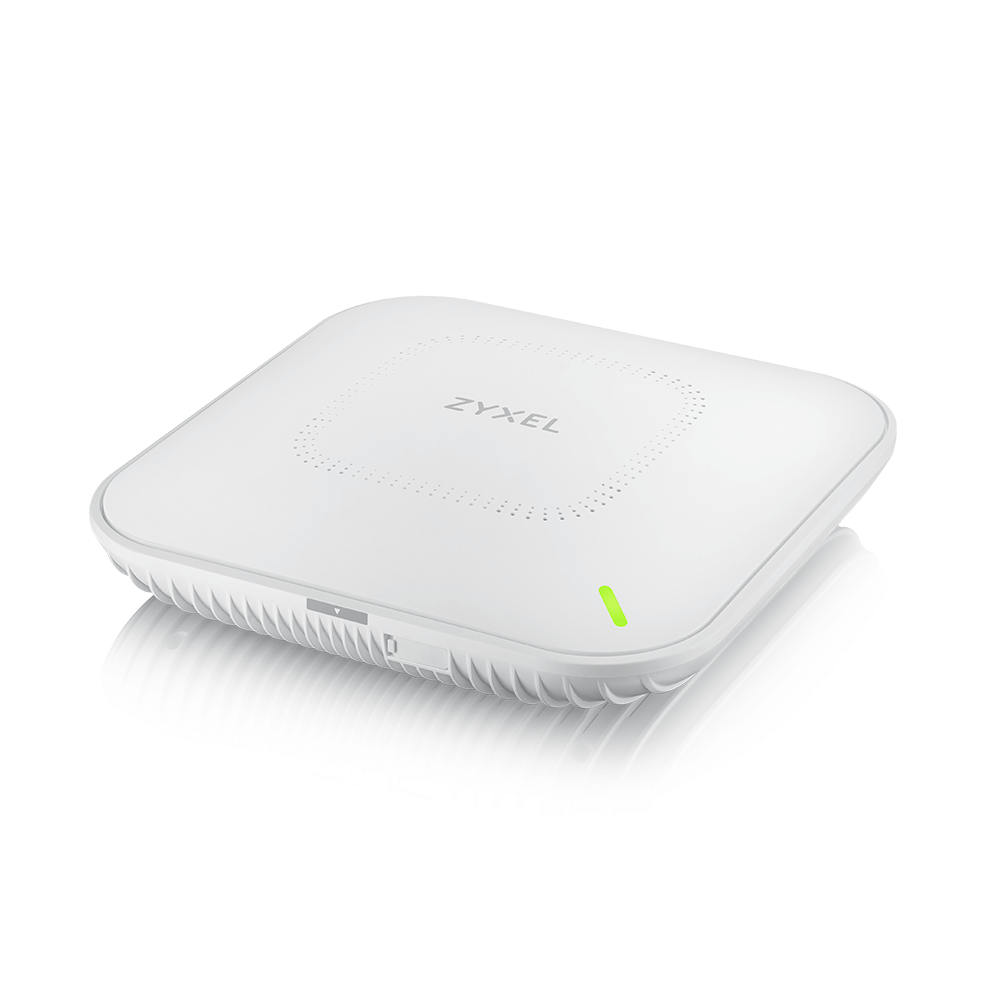

 ZYXEL WAX650S

WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point with Smart Antenna (Free 1YR Nebula Professional license)

The new WiFi 6 standard delivers faster, more consistent connections for every user – even in higher density environments. Any organization that needs to accommodate a large number of devices, can offer better services for everyone, every time they connect to WiFi.

By delivering faster connections that won’t suffer from increased latency when more devices are connected, WiFi 6 delivers the speed and consistency needed to keep pupils engaged and enthusiastic, so they can make the very best use of technology and online learning resources, helping them to achieve more and teachers to be more effective.

Wireless

Standard : IEEE802.11 ax/ac/n/g/b/a

MIMO : MU-MIMO

Wireless speed :

2.4GHz: 1150Mbps

5GHz: 2400Mbps

Frequency band ;

2.4 GHz (IEEE 802.11 b/g/n)

• USA (FCC): 2.412 to 2.462 GHz

• Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (IEEE 802.11 a/n/ac)

• USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz

• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth : 20-, 40- ,80- and 160-MHz

Conducted typical transmit output power :

US (2.4GHz/5GHz): 28/28dBm

EU (2.4GHz/5GHz): 19/26dBm

RF Design

Antenna type : 4x4 Smart Antenna

Antenna gain :

2.4GHz: Peak Gain 3dBi

5GHz: Peak Gain 5.8dBi

Minimum Receive sensitivity : -105 dBm

WLAN feature

Band Steering : Yes

WDS : Future Support

Mesh AP (By License) : Future Support

Mesh AP for multiple SSID with VLAN : Future Support

Smart mesh : Future Support

Fast roaming : Pre-authentication, PMK caching and 802.11k/v/r

DCS (Auto Channel) : Yes

Load balancing : Yes

Security

Wireless Security

• WPA

• WPA-PSK

• WPA-Enterprise (WPA/WPA2/WPA3)

Access management

• L2-isolation

• MAC filtering

• Rogue AP detection

• EAP

• IEEE 802.1X

• RADIUS authentication

Networking

IPv6 ; Yes

VLANs : Yes

WMM : Yes

U-APSD : Yes

DiffServ marking : Yes

Physical Specifications and others

Item : Dimensions (WxDxH)(mm/in.) 230 x 235 x 53.5/9.06 x 9.25 x 2.11

        Weight (g/lb.) 1160/2.56

Packing : Dimensions (WxDxH)(mm/in.) 282 x 266 x 79/11.1 x 10.47 x 3.11

            Weight (g/lb.) 1490/3.38

Included accessories

• Mount plate

• Mounting screws

MTBF (hr)180,653

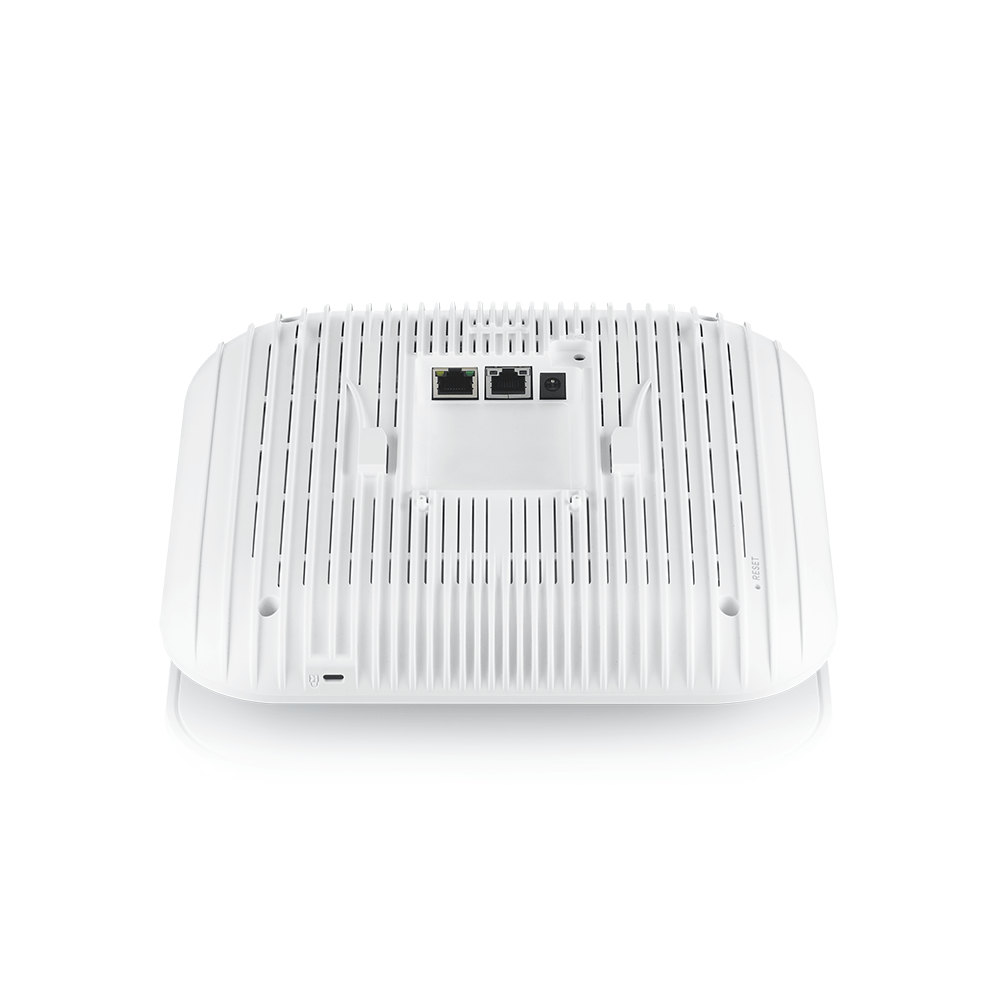

Physical Interfaces

Ethernet port

• 1 x 1/2.5/5Gbps Ethernet (PoE port)

• 1 x 1Gbps Ethernet

Power

• 802.3BT POE (Maximum power draw: 31W)

• 12V DC input

Environmental Specifications

Operating : Temperature

0°C to 50°C/32°F to 122°F

Humidity

10% to 95% (non-condensing)

Storage : Temperature

-30°C to 70°C/-22°F to 158°F

Humidity

10% to 90% (non-condensing)

Certifications

Radio

• FCC Part 15C

• FCC Part 15E

• ETSI EN 300 328

• EN 301 893

• LP0002

EMC

• FCC Part 15B

• EN 301 489-1

• EN 301 489-17

• EN55022

• EN55024

• EN61000-3-2/-3

• EN60601-1-2

• BSMI CNS13438

Safety

• Safety EN 60950-1

• IEC 60950-1

• BSMI CNS14336-1
