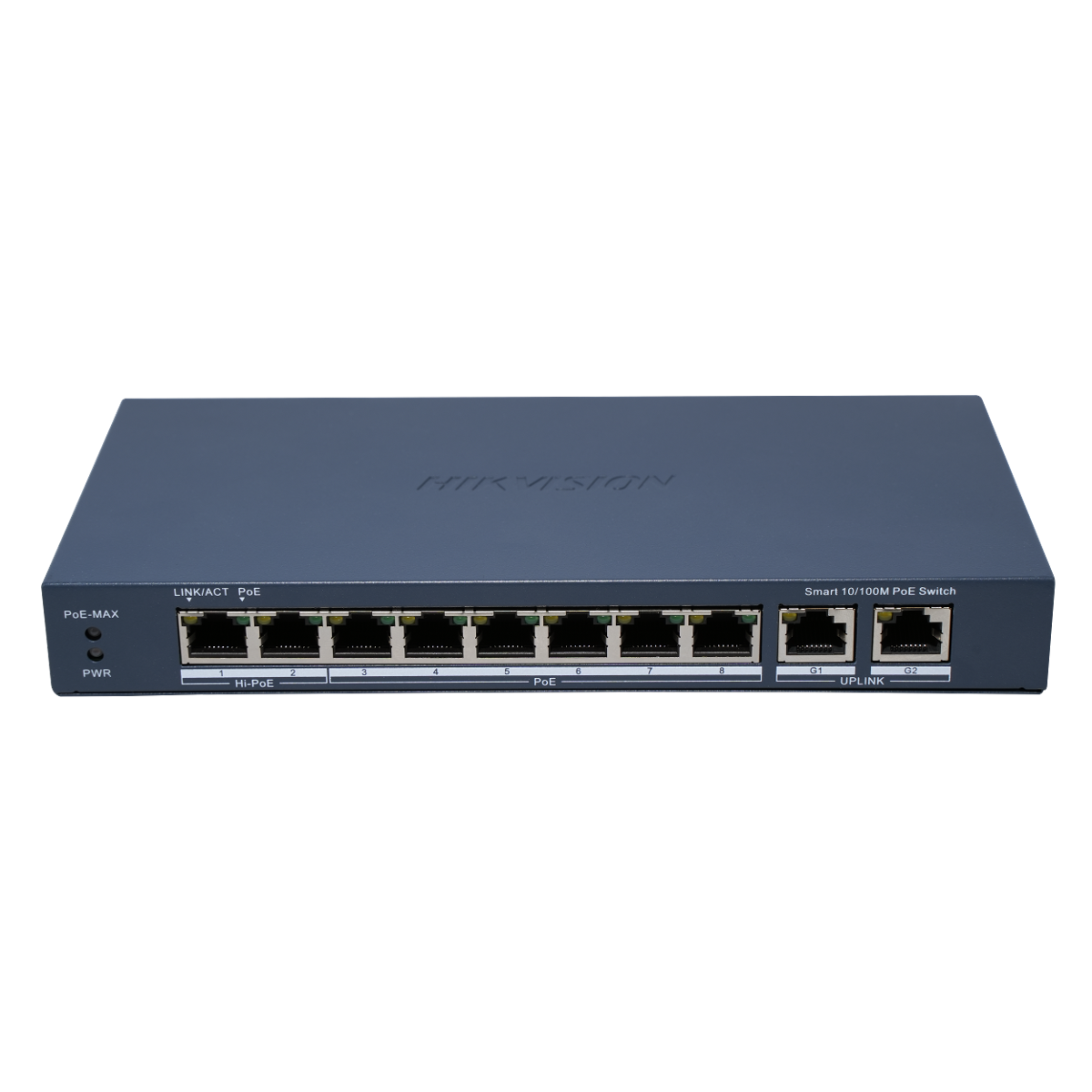

HIKVISION DS-3E1310HP-EI(B) 8 Port Fast Ethernet Smart POE Switch, Total PoE Power Budget 110W

จำนวนครั้งที่เปิดดูสินค้า : 17 | ความคิดเห็น: 0

HIKVISION DS-3E1310HP-EI(B) 8 Port Fast Ethernet Smart POE Switch, Total PoE Power Budget 110W

เพิ่มเมื่อ: 2025-10-20 13:29:46.0

แก้ไขล่าสุด: 2025-10-20 13:29:57.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
SWITCH (สวิตซ์) HIKVISION DS-3E1310HP-EI(B) 8 Port Fast Ethernet Smart POE Switch, 8 x 10/100M PoE Ports, 2 x Gigabit Uplink Ports, Total PoE Power Budget 110W (รับประกัน 3 ปี)

2890.00 บาท

SWITCH HIKVISION DS-3E1310HP-EI(B)

SWITCH (สวิตซ์) HIKVISION DS-3E1310HP-EI(B) 8 Port Fast Ethernet Smart POE Switch, 8 x 10/100M PoE Ports, 2 x Gigabit Uplink Ports, Total PoE Power Budget 110W

- 8 x 10/100M PoE Ports, 2 x Gigabit Uplink Ports
- Total PoE Power Budget 110W
- IEEE802.3af/at/bt Compliant, 90W Max. Output Power for PTZ camera
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6KV Surge Protection

MAC Address Table :  4 K
Ports :  8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
Switching Capacity :  9.6 Gbps
Packet Forwarding Rate :  7.14 Mpps
Internal Cache :  2 Mbits

PoE Standard :
Ports 1 to 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

PoE Power Pin :
Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

Ports 3 to 8: End-span: 1/2(-), 3/6(+)

PoE Port :
Hi-PoE: Ports 1 to 2

PoE: Ports 3 to 8

Max. Port Power :
Ports 1 to 2: 90 W

Ports 3 to 8: 30 W

PoE Power Budget : 110 W

Shell :  Metal
Net Weight :  0.55 kg (1.21 lb)
Gross Weight :  0.95 kg (2.1 lb)
Dimensions (W × H × D) :  217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature :  0 °C to 40 °C (0 °F to 104 °F)
Storage Temperature :  -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity :  5% to 95% (no condensation)
Power Supply :  54 VDC, 2.22 A
Installation Mode :  Desk-Mounted,Wall-Mounted
Max. Power Consumption :  120 W
Power Consumption in Idle :  10 W
Surge Protection :  6 KV

Long Range :
Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

PoE Watchdog :
Ports 1 to 8: auto detect and restart the cameras that do not respond.

Port Isolation :
Ports 1 to 8: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

Loop Prevention :
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Support 802.1w RSTP.

VLAN :
VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.
