| TP-LINK EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
TP-LINK EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
เพิ่มเมื่อ: 2025-10-02 19:43:45.0
แก้ไขล่าสุด: 2025-10-02 19:44:39.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยซ์) TP-LINK EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge (รับประกัน 3 ปี)
TP-LINK EAP100-Bridge KIT Access Point Outdoor
Access Point (แอคเซสพอยซ์) TP-LINK EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
· Up to 1640 ft (500 m) Wi-Fi transmission*
· Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
· Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
· App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
· Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
· 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
· Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.**
· Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.
HARDWARE FEATURES

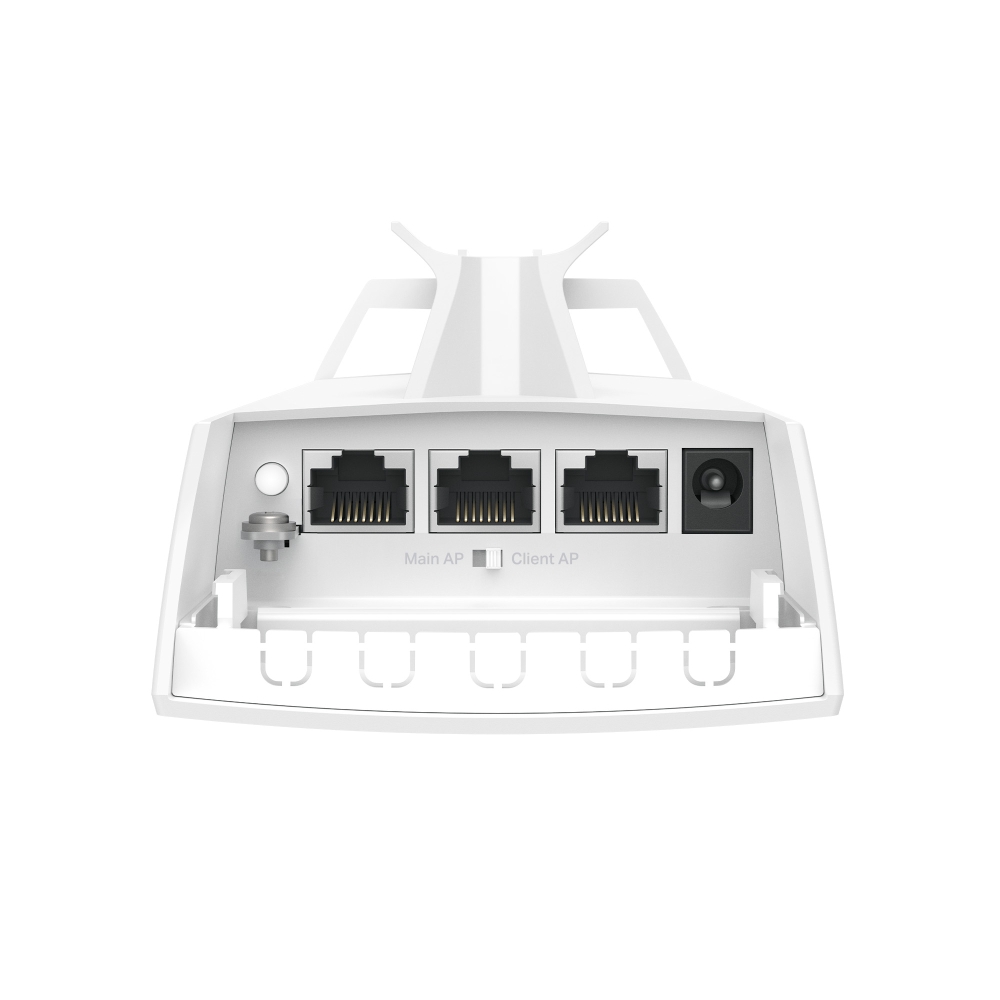

Interface : 3x 10/100 Mbps Ethernet Ports
Button : Reset
Power Supply : 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE
Max. Power Consumption : 4.8 W
Dimensions ( W x D x H ) : 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna :
Internal 2×2 Dual-polarized directional MIMO antennas
2.4 GHz: 8.0 dBi
Horizontal:70°, Vertical: 70°
Weatherproof Enclosure : IP65

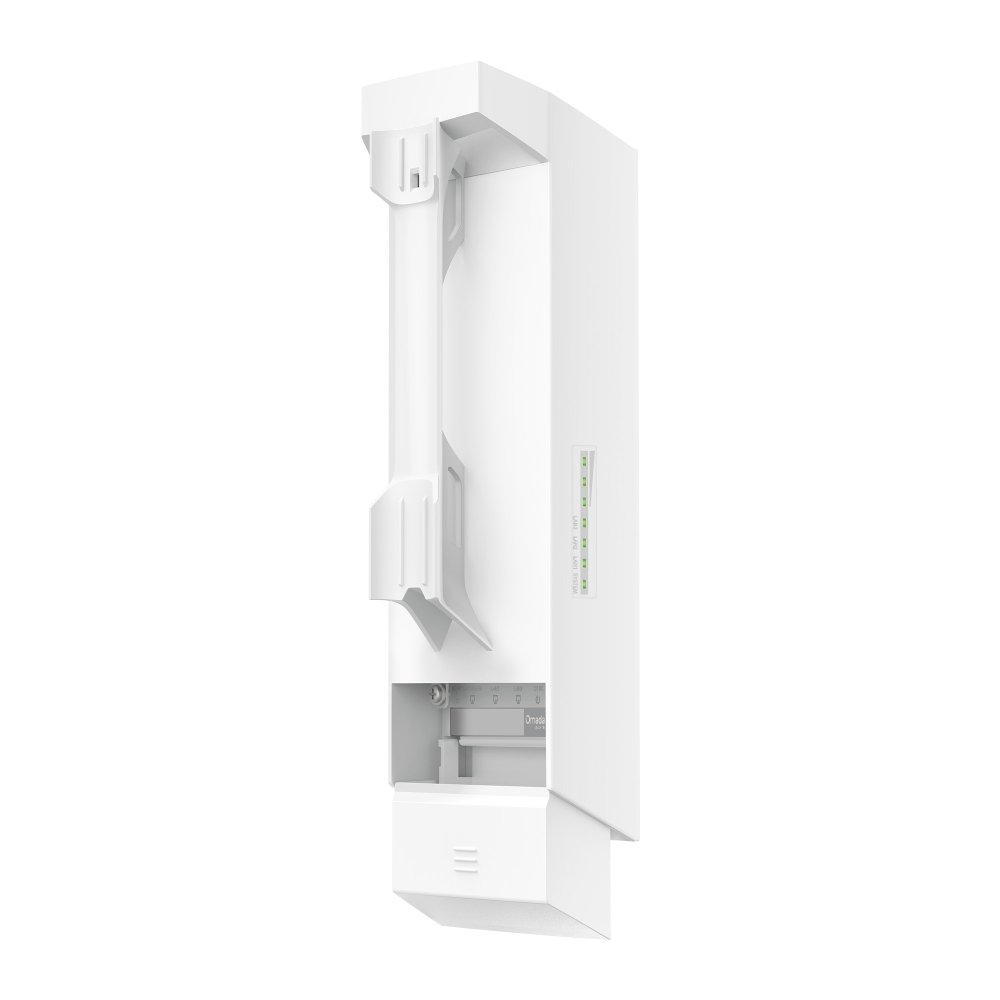

Mounting : Pole and wall mounting ( Pole accessories included)
WIRELESS FEATURES
Coverage : 500 m (0.31 mi)*
Wireless Standards : IEEE 802.11b/g/n
Frequency : 2.4 GHz
Signal Rate : 2.4 GHz: Up to 300 Mbps
Wireless Functions :
• MIMO: 2.4G 2 × 2 MIMO
• Mesh
• Beamforming
• Channel: 1-11 (US); 1-13 (EU)
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
Wireless Security :
• VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
Transmission Power :
• CE:
<20dBm (2.4 GHz, EIRP);
• FCC:
<22dBm (2.4 GHz)
Package Content :
• EAP100-Bridge KIT
• Installation Guide
• Pole Mounting Kit
Environment :
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
