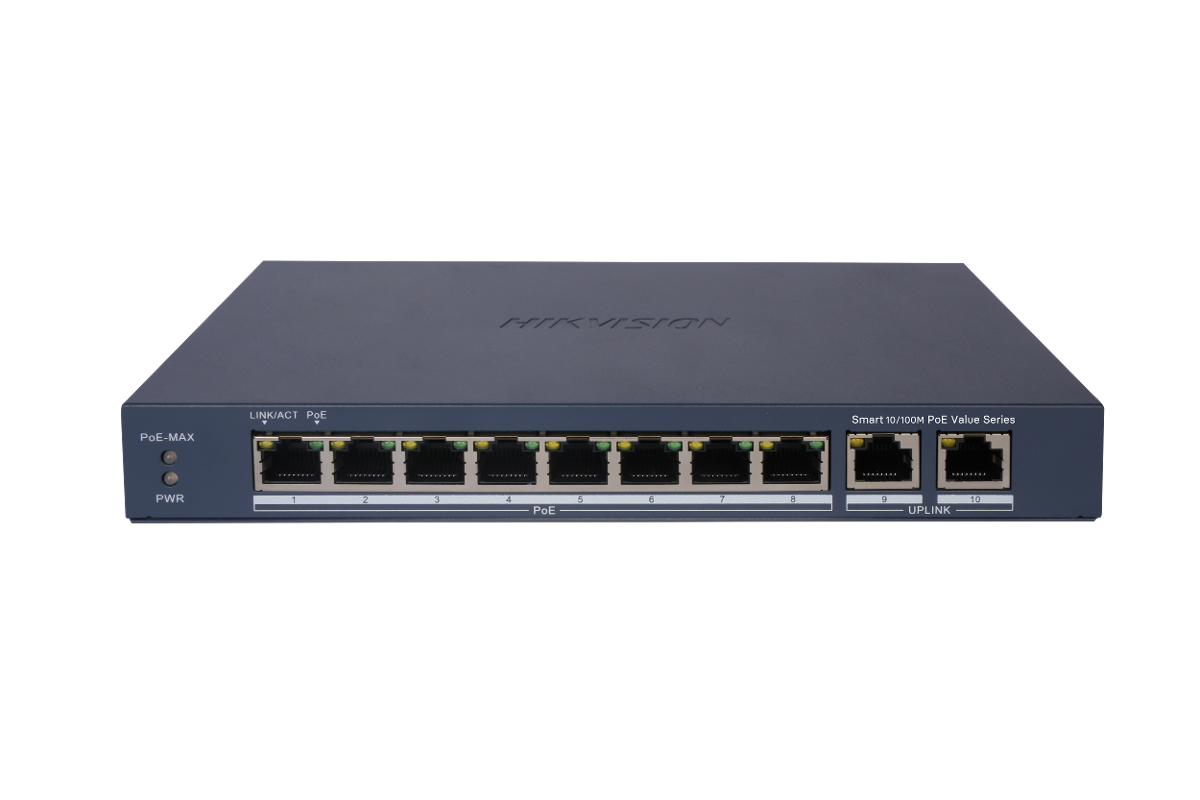

HIKVISION DS-3E1310P-EI/M 8 Port Fast Ethernet Smart POE Switch, Total PoE Power Budget 60W

จำนวนครั้งที่เปิดดูสินค้า : 10 | ความคิดเห็น: 0

HIKVISION DS-3E1310P-EI/M 8 Port Fast Ethernet Smart POE Switch, Total PoE Power Budget 60W

เพิ่มเมื่อ: 2025-10-20 14:32:48.0

แก้ไขล่าสุด: 2025-10-20 14:33:04.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
SWITCH (สวิตซ์) HIKVISION DS-3E1310P-EI/M 8 Port Fast Ethernet Smart POE Switch, 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port, Total PoE Power Budget 60W (รับประกัน 3 ปี)

1990.00 บาท

SWITCH HIKVISION DS-3E1310P-EI/M

SWITCH (สวิตซ์) HIKVISION DS-3E1310P-EI/M 8 Port Fast Ethernet Smart POE Switch, 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port, Total PoE Power Budget 60W

- 8 × 10/100 Mbps PoE ports,2 × Gigabit RJ45 port
- Total PoE Power Budget 60 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection

Ports :  8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table :  4 K
Switching Capacity :  Whole-Device Performance: 9.6 Gbps

Port Performance: 5.6 Gbps : Packet Forwarding Rate
Whole-Device Performance: 7.14 Mpps : Port Performance: 4.17 Mpps

Internal Cache : 2 Mbits

PoE Standard :  IEEE 802.3af,IEEE 802.3at
PoE Power Pin :  End-span: 1/2(-), 3/6(+)
PoE Port :  PoE: Ports 1 to 8
Max. Port Power :  30 W
PoE Power Budget :  60 W

Shell :  Metal material
Net Weight :  0.54 kg (1.19 lb)
Gross Weight :  1.08 kg (2.38 lb)
Dimensions (W × H × D) :  217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature :  0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature :  -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity :  5% to 95% (no condensation)
Relative Humidity :  5% to 95% (no condensation)
Power Supply :  DC54 V,1.2 A
Installation Mode :  Desk-Mounted,Wall-Mounted
Max. Power Consumption : 65 W
Power Consumption in Idle :  5 W
Surge Protection :  6 kV

Long Range :
Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Port Isolation :
Ports 1 to 8: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog :
Ports 1 to 8: auto detect and restart the cameras that do not respond.
Loop Prevention :
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.

VLAN :
VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.
