TP-LINK EAP725-Wall BE5000 Wall-Plate Dual-Band Wi-Fi 7 Access Point
เพิ่มเมื่อ: 2025-05-30 14:22:52.0
แก้ไขล่าสุด: 2025-05-30 14:24:38.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยต์) TP-LINK EAP725-Wall BE5000 Wall-Plate Dual-Band Wi-Fi 7 Access Point, 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.

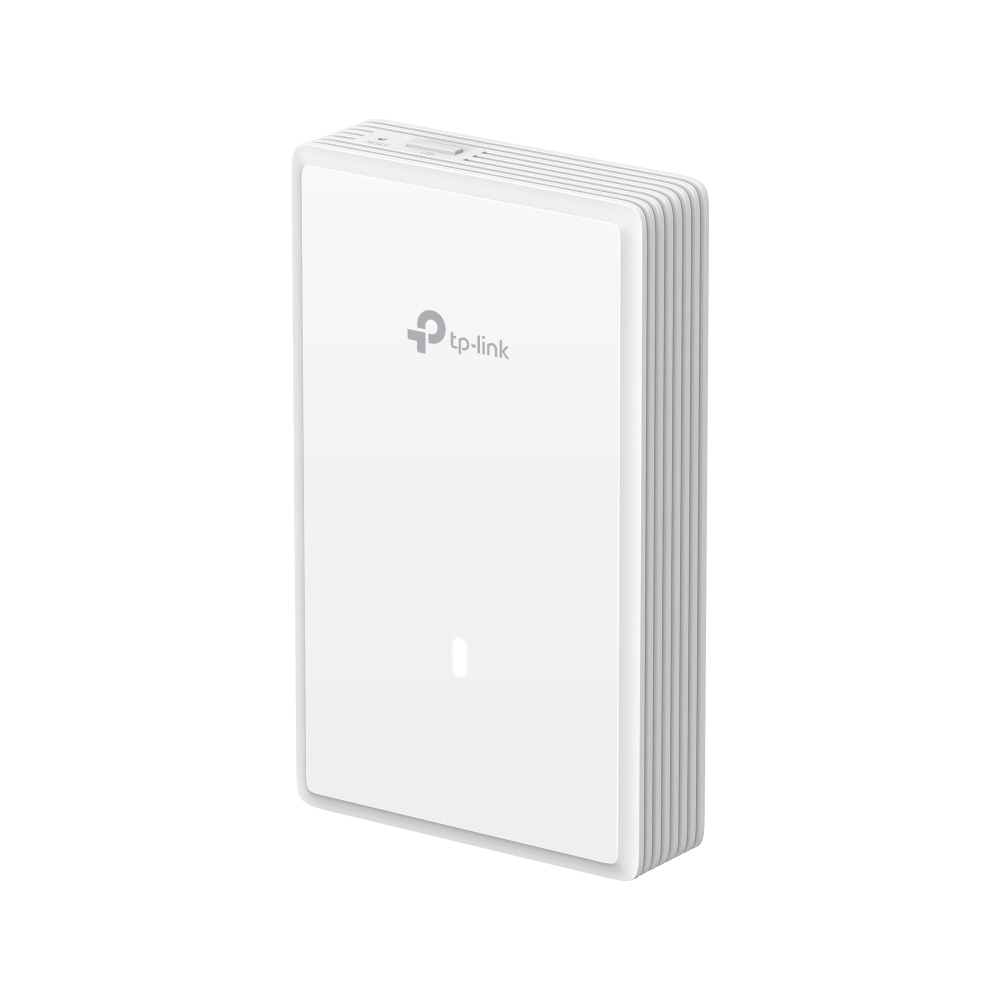

TP-LINK EAP725-Wall
Access Point (แอคเซสพอยต์) TP-LINK EAP725-Wall BE5000 Wall-Plate Dual-Band Wi-Fi 7 Access Point, 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Interface :
• Uplink: 1× 2.5G Ethernet Port
• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input.)
Physical Security Lock : No
Button : Reset, LED
Power Supply 802.3at/bt PoE
Power Consumption :
• 802.3bt: 17W (PoE Out support 15.4W)
• 802.3at: 17W (PoEOut support 7W)
Dimensions : 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
Antenna
4× Internal Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting : Wall Mounting (Kits included)
Coverage : 50 ㎡ (600 ft²)**
Concurrent Clients : 250+§
Wireless Standards : IEEE 802.11 a/b/g/n/ac/ax/be
Frequency : 2.4 GHz and 5 GHz
Signal Rate :
• 5 GHz: Up to 4324 Mbps
• 2.4 GHz: Up to 688 Mbps
Wireless Functions :
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming△
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security :
• Captive Portal Authentication△
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power :
< 22 dBm (2.4 GHz)
< 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4)
Omada App : Yes
Centralized Management :
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access : Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Package Contents :
• BE5000 Wall Plate Wi-Fi 7 Access Point
• Installation Guide
• Mounting Kits
System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
