Synology DS1522+

 เพิ่มเมื่อ: 03/11/2022
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
อุปกรณ์จัดเก็บข้อมูลแบบเครือข่าย (NAS) CPU AMD Ryzen R1600 ความถี่ 2-core 2.6 (base) / 3.1 (turbo) GHz หน่วยความจำระบบ 8 GB DDR4 ECC SODIMM ความจุหน่วยความจำสูงสุด 32 GB (16 GB x 2) ประกันสินค้า 3 ปี
28,900.00 บาท

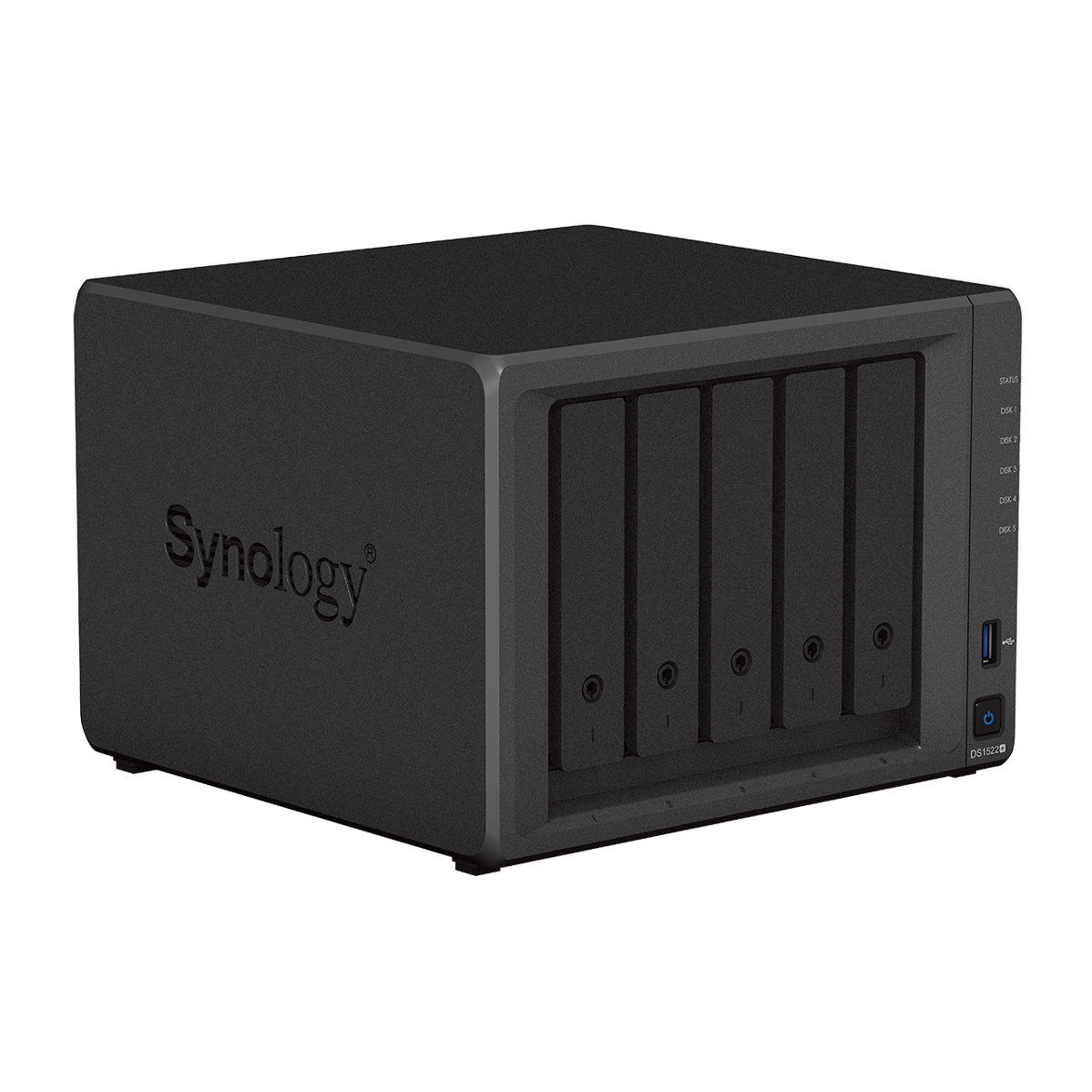

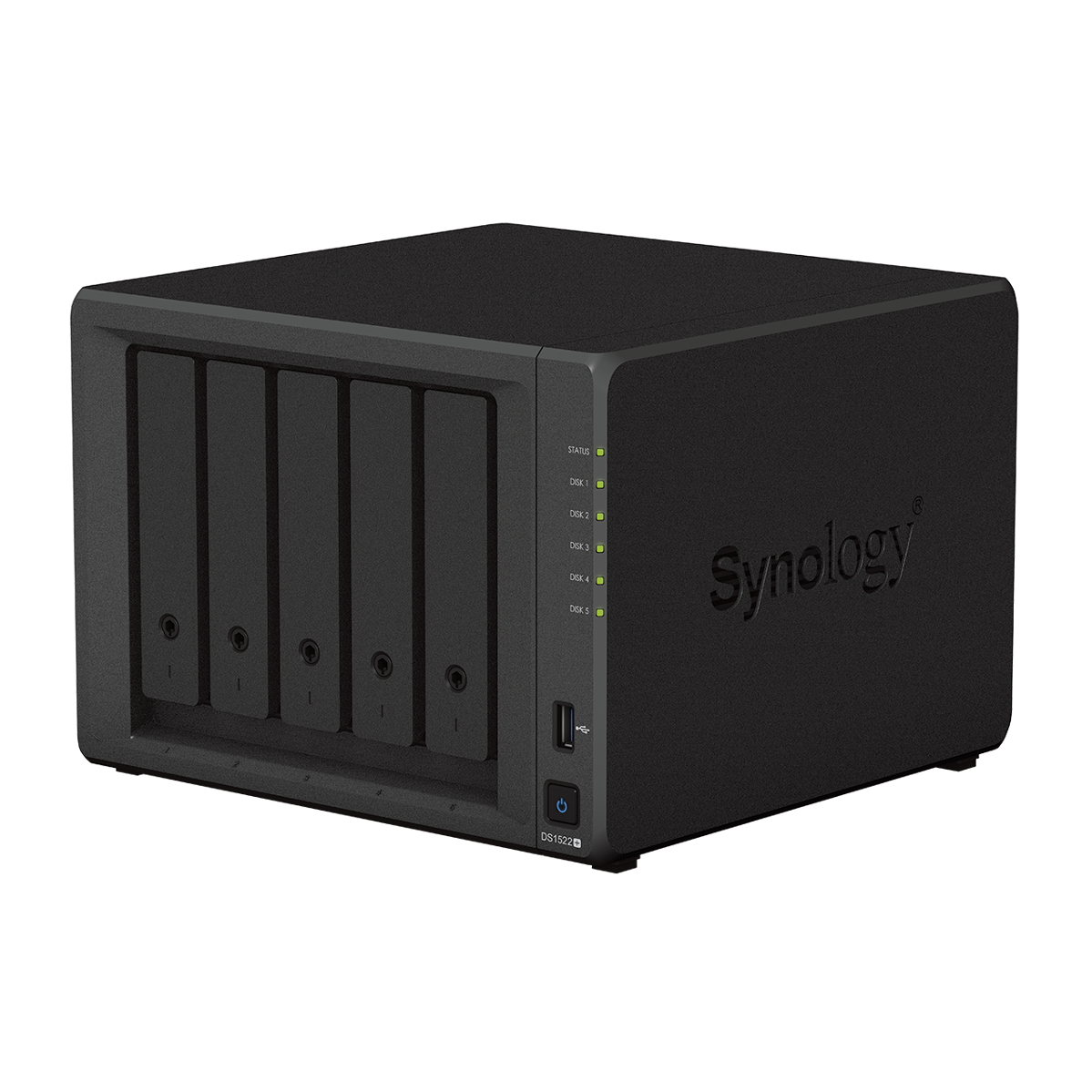

Synology DS1522+

  • CPU AMD Ryzen™ R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz
  • Hardware encryption engine AES-NI
  • Memory 8 GB DDR4 ECC SODIMM (expandable up to 32 GB)
  • Compatible drive types
    •  5 x 3.5" or 2.5" SATA HDD/SSD (drives not included)
    •  2 x M.2 2280 NVMe SSD (drives not included)
    •  Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6
  • Hot swappable drives Yes

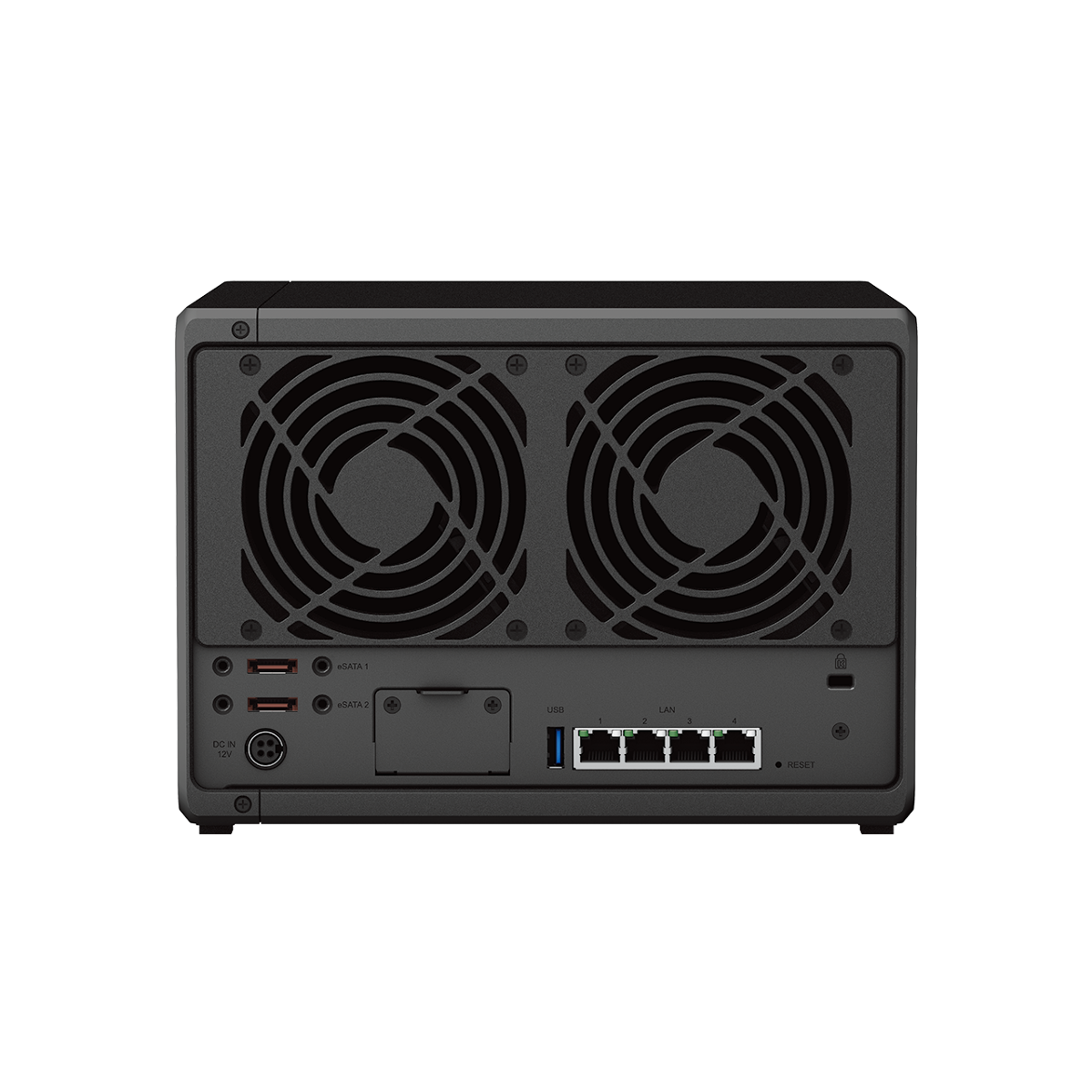

  • External ports
    •  2 x USB 3.2 Gen 1 ports
    •  2 x Expansion ports (eSATA)
  • Form factor Desktop
  • Size (HxWxD) 166 x 230 x 223 mm
  • Weight 2.7 kg
  • LAN ports 4 x 1GbE RJ-45
  • Wake on LAN/WAN Yes
  • Network expansion Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2
  • Scheduled power on/off Yes
  • System fans 2 x (92 x 92 x 25 mm)
  • AC input power voltage 100 V to 240 V AC
  • Power frequency 50/60 Hz, single phase
  • Operating environment
    •  Temperature: 0°C to 40°C (32°F to 104°F)
    •  Relative humidity: 5% to 95% RH
  • Storage environment
    •  Temperature: -20°C to 60°C (-5°F to 140°F)
    •  Relative humidity: 5% to 95% RH
  • Maximum operating altitude 5,000 m (16,400 ft)
  • Networking protocols SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP)
  • File systems
    •  Internal: Btrfs, ext4
    •  External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
  • Supported RAID types Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
  • Storage management
    •  Max. single volume size: 108 TB
    •  Max. number of system snapshots: 65,53611
    •  Max. number of internal volumes: 64
  • SSD cache
    •  Read/write cache support
    •  M.2 NVMe and 2.5" SATA SSD support
  • File sharing capabilities
    •  Maximum local user accounts: 2,048
    •  Maximum local groups: 256
    •  Maximum shared folders: 512
    •  Maximum concurrent SMB/NFS/AFP/FTP connections: 2,000
  • Privileges Windows® Access Control List (ACL) and application privileges
  • Directory services Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their
  • existing credentials
  • Virtualization VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack, and Kubernetes
  • Security Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTP (customizable cipher suite)
  • Supported browsers Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets







Data Sheet

https://global.download.synology.com/download/Document/Hardware/DataSheet/DiskStation/22-year/DS1522%2B/enu/Synology_DS1522%2B_Data_Sheet_enu.pdf





Synology NAS DS1522+ Hardware Installation Guide

https://global.download.synology.com/download/Document/Hardware/HIG/DiskStation/22-year/DS1522%2B/enu/DS1522%2B_HIG_enu.pdf
